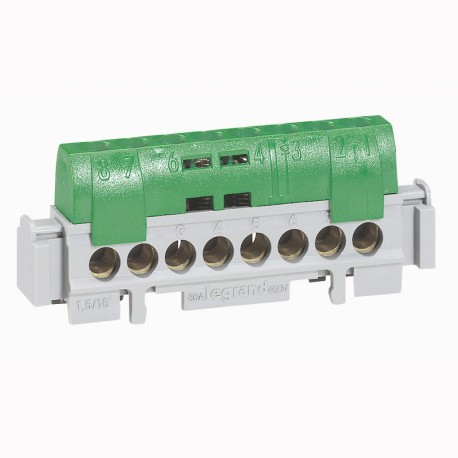

Images are for illustrative purposes only. Please refer to data sheet for details
004836 LEGRAND TERMINAL REPART.22P IN £ IP2 EARTH
004836
004836
LEGRAND
10 Pcs.
TERMINAL REPART.22P IN £ IP2 EARTH
Legrand Fully Shrouded IP2X Earth Terminal Block Rail Mounting 1 Entry 21 Exit 176mm Green
IP2X distribution terminal - ground - 1 connection. from 6 to 25mm² - green - L. 176mm
Automation > Rail terminal bar
SPLITTERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand 004836 terminal repart is utilized within electrical enclosures to distribute earth potential effectively across multiple individual outgoing circuits from a single feed point.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height (EF000040): 30 mm
- Nominal current (EF000001): 90 A
- Connection type (EF000124): Screwing
- Mounting method (EF000003): DIN rail
- Contact safe (EF004521): Yes
- Suitable for extra fine-strand conductors (EF016328): No
- Number of poles (EF001391): 1
- Conductor cross section, output (EF016331): 1.5 mm²
- Suitable for stranded conductors (EF007818): Yes
- Depth (EF000049): 16 mm
- Conductor cross section, input (EF016330): 6 mm²
- Suitable for fine strand conductors (EF007804): Yes
- Width (EF000008): 176 mm
- Suitable for solid conductors (EF007816): Yes
- Number of outputs (EF000319): 21
- Number of inputs (EF000318): 1
More info
▲
Fully shrouded terminal blocks providing finger protection IP2x For fixing to 12 x 2mm rail Can be fixed directly to DIN rail without accessory
| Number of poles | 1 |
|---|---|
| Nominal current | 90 A |
| Connection type | Screwing |
| Mounting method | DIN rail |
| Number of inputs | 1 |
| Number of outputs | 21 |
| Suitable for solid conductors | Yes |
| Suitable for stranded conductors | Yes |
| Suitable for fine strand conductors | Yes |
| Suitable for fine strand conductors without cable end sleeve | No |
| Suitable for extra fine-strand conductors | No |
| Suitable for extra fine-strand conductors without cable end sleeve | No |
| Conductor cross section, input | 6-25 mm² |
|---|---|
| Conductor cross section, output | 1.5-16 mm² |
| Contact safe | Yes |
| Height | 30 mm |
| Width | 176 mm |
| Depth | 16 mm |
| Degree of protection (IP) | IP2X |
| Operating / setting temperature | -5-40 °C |
| Storage temperature | -25-70 °C |
| Type of distribution blocks | Earth |
| Terminals capacity | 1.5-25 mm² |
| Label space/information surface | No |
