View larger
Images are for illustrative purposes only. Please refer to data sheet for details

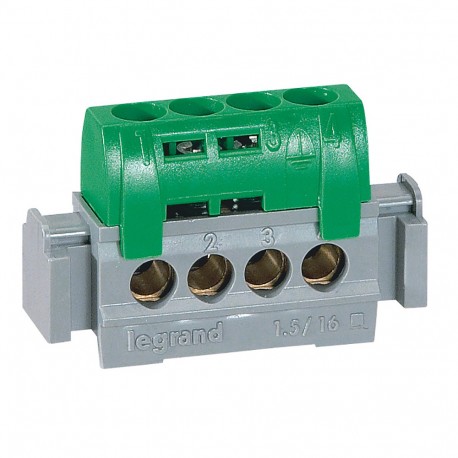

004830 LEGRAND TERMINAL REPART. 4P IP2 EARTH
004830
004830
LEGRAND
10 Pcs.
TERMINAL REPART. 4P IP2 EARTH
Legrand Fully Shrouded IP2X Earth Terminal Block Rail Mounting 0 Entry 4 Exit 47mm Green
IP2X distribution terminal - ground - 4 connections. from 1.5 to 16mm² - green - L. 47mm
Automation > Rail terminal bar
SPLITTERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Fully shrouded terminal blocks providing finger protection IP2x For fixing to 12 x 2mm rail
| Number of poles | 1 |
|---|---|
| Nominal current | 76 A |
| Connection type | Screwing |
| Mounting method | DIN rail |
| Number of inputs | 1 |
| Number of outputs | 3 |
| Suitable for solid conductors | Yes |
| Suitable for stranded conductors | Yes |
| Suitable for fine strand conductors | Yes |
| Suitable for fine strand conductors without cable end sleeve | No |
| Suitable for extra fine-strand conductors | No |
| Suitable for extra fine-strand conductors without cable end sleeve | No |
| Conductor cross section, input | 1.5-16 mm² |
|---|---|
| Conductor cross section, output | 1.5-16 mm² |
| Contact safe | Yes |
| Height | 30 mm |
| Width | 47 mm |
| Depth | 16 mm |
| Degree of protection (IP) | IP2X |
| Operating / setting temperature | -5-40 °C |
| Storage temperature | -25-70 °C |
| Type of distribution blocks | Earth |
| Terminals capacity | 1.5-16 mm² |
| Label space/information surface | No |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 30 mm |
| Nominal current (EF000001) | 76 A |
| Connection type (EF000124) | Screwing |
| Mounting method (EF000003) | DIN rail |
| Contact safe (EF004521) | Yes |
| Suitable for extra fine-strand conductors (EF016328) | No |
| Suitable for extra fine-strand conductors without cable end sleeve (EF016329) | No |
| Number of poles (EF001391) | 1 |
| Conductor cross section, output (EF016331) | 1.5 mm² |
| Suitable for fine strand conductors without cable end sleeve (EF016327) | No |
| Suitable for stranded conductors (EF007818) | Yes |
| Depth (EF000049) | 16 mm |
| Conductor cross section, input (EF016330) | 1.5 mm² |
| Suitable for fine strand conductors (EF007804) | Yes |
| Width (EF000008) | 47 mm |
| Suitable for solid conductors (EF007816) | Yes |
| Number of outputs (EF000319) | 3 |
| Number of inputs (EF000318) | 1 |
