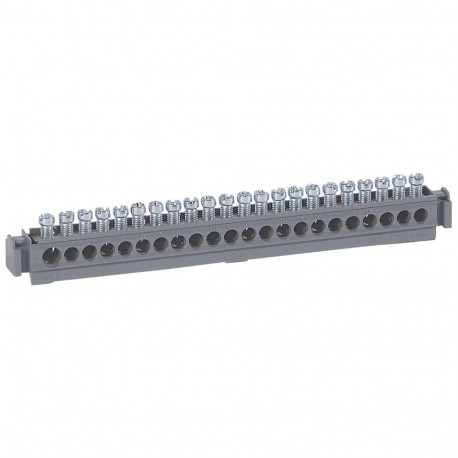

004826 LEGRAND 22 TERMINAL REPART. 22p in £
004826
004826
LEGRAND
10 Pcs.
22 TERMINAL REPART. 22p in £
Terminal block on support - 21 x 1.5 to 16² - L. 176 mm
Bare terminal block on support - 21x1.5 to 16mm² - L. 176mm
Automation > Rail terminal bar
SPLITTERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)10
- Volume (dm3)1.619
- Weight (g)1 059.00
Product characteristics
Distribution terminal blocks- Conform to standard IEC 60998-2-1
- Supplied ready for use (screws not tightened)
- 100 A max. - 400 V~ with 25 mm² input
- 80 A max. - 400 V~ with 16 mm² input
- Mounting on rail with universal support Cat.No 0 048 11, or on 12 x 2 flat bar
- Supplied with Duplix markers
- Each terminal block is supplied with:
- 2 green Duplix marked earth - 2 blue Duplix marked N
- 2 red Duplix marked L
- Number of connections : 1 x 6 to 25 + 21 x 1.5 to 16 mm²
- Length : 176 mm
General characteristics
Distribution terminal blocks| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 30 mm |
| Nominal current (EF000001) | 76 A |
| Connection type (EF000124) | Screwing |
| Mounting method (EF000003) | DIN rail |
| Contact safe (EF004521) | No |
| Suitable for extra fine-strand conductors (EF016328) | No |
| Suitable for extra fine-strand conductors without cable end sleeve (EF016329) | No |
| Number of poles (EF001391) | 1 |
| Conductor cross section, output (EF016331) | 1.5 mm² |
| Suitable for fine strand conductors without cable end sleeve (EF016327) | No |
| Suitable for stranded conductors (EF007818) | Yes |
| Depth (EF000049) | 16 mm |
| Conductor cross section, input (EF016330) | 1.5 mm² |
| Suitable for fine strand conductors (EF007804) | Yes |
| Width (EF000008) | 176 mm |
| Suitable for solid conductors (EF007816) | Yes |
| Number of outputs (EF000319) | 20 |
| Number of inputs (EF000318) | 1 |
