View larger
Images are for illustrative purposes only. Please refer to data sheet for details

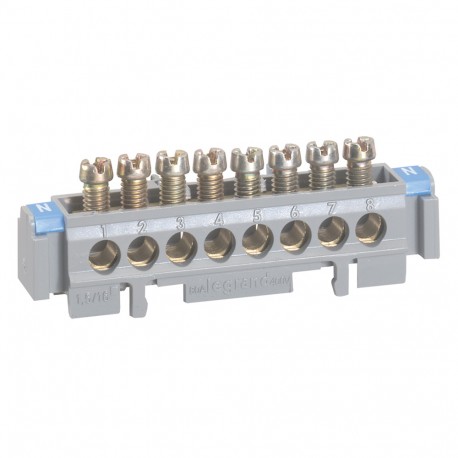

004822 LEGRAND TERMINAL BLOCK UNIVERSAL 8 OUTPUTS
004822
004822
LEGRAND
10 Pcs.
TERMINAL BLOCK UNIVERSAL 8 OUTPUTS
Legrand Fully Shrouded Terminal Block Rail Mounting 0 Entry 8 Exit 75mm
Bare terminal block on support - L. 75mm
Automation > Rail terminal bar
SPLITTERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Partly shrouded terminal blocks on base For fixing to 12 x 2mm rail Supplied with Duplix markers
| Number of poles | 1 |
|---|---|
| Nominal current | 76 A |
| Connection type | Screwing |
| Mounting method | DIN rail |
| Number of inputs | 1 |
| Number of outputs | 7 |
| Suitable for solid conductors | Yes |
| Suitable for stranded conductors | Yes |
| Suitable for fine strand conductors | Yes |
| Suitable for fine strand conductors without cable end sleeve | No |
| Suitable for extra fine-strand conductors | No |
| Suitable for extra fine-strand conductors without cable end sleeve | No |
| Conductor cross section, input | 1.5-16 mm² |
|---|---|
| Conductor cross section, output | 1.5-16 mm² |
| Contact safe | No |
| Height | 10.5 mm |
| Width | 75 mm |
| Depth | 6.5 mm |
| Operating / setting temperature | -5-40 °C |
| Storage temperature | -25-70 °C |
| Type of distribution blocks | Multifunction |
| Terminals capacity | 1.5-16 mm² |
| Label space/information surface | No |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 10.5 mm |
| Nominal current (EF000001) | 76 A |
| Connection type (EF000124) | Screwing |
| Mounting method (EF000003) | DIN rail |
| Contact safe (EF004521) | No |
| Suitable for extra fine-strand conductors (EF016328) | No |
| Suitable for extra fine-strand conductors without cable end sleeve (EF016329) | No |
| Number of poles (EF001391) | 1 |
| Conductor cross section, output (EF016331) | 1.5 mm² |
| Suitable for fine strand conductors without cable end sleeve (EF016327) | No |
| Suitable for stranded conductors (EF007818) | Yes |
| Depth (EF000049) | 6.5 mm |
| Conductor cross section, input (EF016330) | 1.5 mm² |
| Suitable for fine strand conductors (EF007804) | Yes |
| Width (EF000008) | 75 mm |
| Suitable for solid conductors (EF007816) | Yes |
| Number of outputs (EF000319) | 7 |
| Number of inputs (EF000318) | 1 |
