LEGRAND 004694 004694 LEGRAND HOUR COUNTER 230V 2MOD View larger

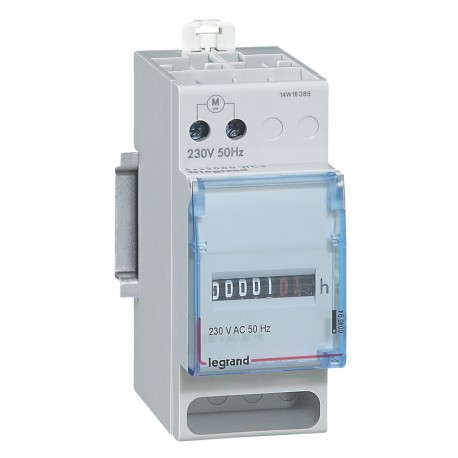

Images are for illustrative purposes only. Please refer to data sheet for details

004694 LEGRAND HOUR COUNTER 230V 2MOD

004694

004694

LEGRAND

1 Pcs.

HOUR COUNTER 230V 2MOD Voltmeter - 0-500 V - square barrel 68 x 68 mm Totalizing hour counter - numerical display - 230V~ - 50Hz

Automation > Hour meter
SUPERVISION AND ENERGY MEASUREMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand hour counter 004694 is an analogue operating hours meter used to monitor run times and maintenance intervals for industrial machinery and commercial equipment. Devices of this type are typically integrated into control panels to track active operational periods and ensure timely servicing.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 83 mm
  • Model (EF000010): Analogue
  • Operation indication (EF004881): No
  • Degree of protection (IP) (EF005474): IP2X
  • Width in number of modular spacings (EF002950): 2
  • Voltage type (EF000187): AC
  • Mounting method (EF000003): DIN rail
  • Type of drive (EF001422): Mains synchronous
  • Input voltage (EF003840): 230 V
  • Number of digits (EF005555): 7
  • Count area (EF005440): 99999.99 h
  • Frequency input voltage (EF006705): 50 Hz
  • Built-in depth (EF000218): 44 mm
  • Width (EF000008): 35 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.469
  • Weight (g)107.00
Product characteristics
Totalising hour counters
  • Count the operating hours of a machine or an electrical device to determine its exact operating time
  • Counter with numerical display
  • Capacity: 5 digits + 2 decimal places (1 unit = 1 hour)
  • Precision: 1/100th hour
  • Consumption: 0.2 VA
  • 230 V~ - 50 Hz
  • Number of modules : 2
General characteristics
Electrical energy metering on rail

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
