View larger
Images are for illustrative purposes only. Please refer to data sheet for details

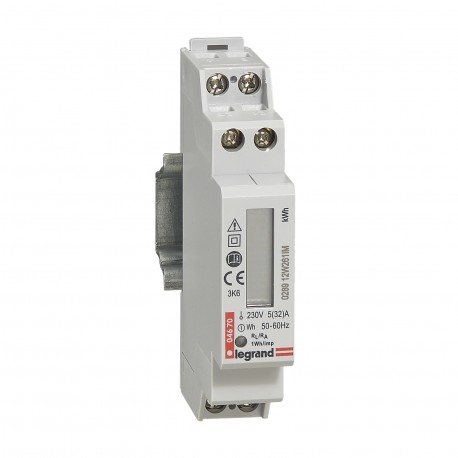

004670 LEGRAND EMDX3 METER SINGLE-PHASE NULL 32A
004670
004670
LEGRAND
1 Pcs.
EMDX3 METER SINGLE-PHASE NULL 32A
EMDX³ 32A Energy Meter Single Phase Direct Connection Pulse Output Non-MID
Single-phase energy meter EMDX³ - non-MID - direct connection 32A - 1mod
Automation > Kilowatt-hour meter
SUPERVISION AND ENERGY MEASUREMENT
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Measure the electricity consumed by a single phase or three phase circuit downstream of the electricity distribution metering Display electricity consumption in kWh, as well as other values such as current, active energy, reactive energy and power (depending on the catalogue number) MID compliance ensures accuracy of the metering with a view to recharging for the electricity used
| Type of meter | Electronic |
|---|---|
| Nominal current (In) | 5 A |
| Max. current (Imax) | 32 A |
| Nominal voltage (Un) N-L | 196-264 V |
| Frequency | 50-60 Hz |
| Pole type | Single phase |
| Model | Direct measurement |
| Pulse rate | 2000-2000 Imp/kWh (kvarh) |
|---|---|
| Type of indication | Digital |
| Width in number of modular spacings | 1 |
| Type of interface | None |
| EEC40 signature | No |
| With lock code | No |
| Degree of protection (IP) | IP30 |
| Feature Name | Feature Value |
|---|---|
| EEC40 signature (EF008845) | No |
| With lock code (EF008846) | No |
| Degree of protection (IP) (EF005474) | IP30 |
| Pulse rate (EF008840) | 2000 Imp/kWh (kvarh) |
| Pole type (EF008843) | Single phase |
| Frequency (EF000416) | 50 Hz |
| Max. current (Imax) (EF000877) | 32 A |
| Model (EF000010) | Direct measurement |
| Type of meter (EF005441) | Electronic |
| Type of interface (EF006977) | None |
| Nominal current (In) (EF008873) | 5 A |
| Width in number of modular spacings (EF002950) | 1 |
| Nominal voltage (Un) N-L (EF008871) | 196 V |
| Type of indication (EF000306) | Digital |
