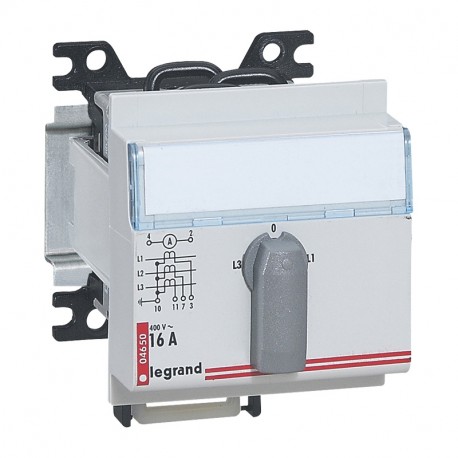

LEGRAND 004653 004653 LEGRAND SWITCH VOLTIMETRO 7 POS View larger
Images are for illustrative purposes only. Please refer to data sheet for details

004653 LEGRAND SWITCH VOLTIMETRO 7 POS

004653

004653

LEGRAND

1 Pcs.

SWITCH VOLTIMETRO 7 POS Voltmeter cam switch Lexic- 3-phase+neutral - 7 positions -3 modules -fixing on rail Voltmeter rotary switch - 7 positions

Automation > Voltmeter selector switch
SUPERVISION AND ENERGY MEASUREMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Legrand 004653 switch voltimetro 7 pos is a panel-mounted manual selector designed for routing electrical measurements in distribution boards and control desks. Technicians use these components to safely cycle a single analog or digital voltmeter through multiple voltage inputs within a power network. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP40
  • Measurement between phases possible (EF001145): Yes
  • Modular version (EF001126): Yes
  • With control element (EF001538): No
  • With zero (off) position (EF001416): Yes
  • Device construction (EF008240): Surface mounting

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.521
  • Weight (g)150.00
Product characteristics
Selective measurement switches
  • For manual selection of the circuits to be measured
Voltmeter cam switches
  • For measuring the voltages in a circuit with one voltmeter
  • 3-phase with neutral,
  • 7-position cam switch
  • Number of modules : 3
General characteristics
Electrical energy metering on rail
