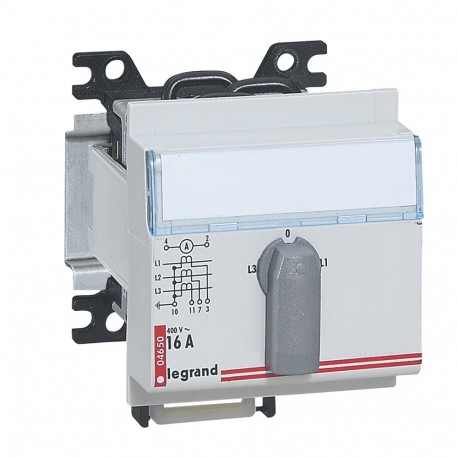

LEGRAND 004650 004650 LEGRAND SWITCH AMPERIMETRO 4 POS. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

004650 LEGRAND SWITCH AMPERIMETRO 4 POS.

004650

004650

LEGRAND

1 Pcs.

SWITCH AMPERIMETRO 4 POS. Ammeter cam switch Lexic - 3-phase - 4 positions - 3 modules - fixing on rail Ammeter Switch - Three-Phase - 4 Positions

Automation > Amp meter switch
SUPERVISION AND ENERGY MEASUREMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand 004650 LEGRAND SWITCH AMPERIMETRO 4 POS. is a specialized rotary selector switch configured for ammeter applications in electrical control panels. It allows technicians to switch a single measuring instrument across multiple phases to verify balanced electrical loads and operational current draws safely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP50
  • Modular version (EF001126): Yes
  • With control element (EF001538): No
  • With zero (off) position (EF001416): Yes

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.521
  • Weight (g)154.00
Product characteristics
Selective measurement switches
  • For manual selection of the circuits to be measured
Ammeter cam switch
  • For measuring the current in a circuit with one ammeter, connected via a current transformer (CT)
  • 3-phase, 4-position cam switch
  • Number of modules : 3
General characteristics
Electrical energy metering on rail
