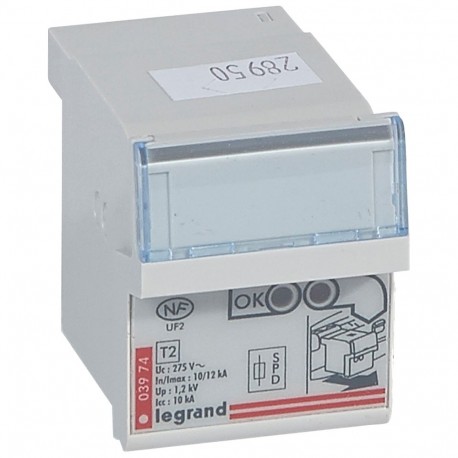

003974 LEGRAND REPLACEMENT MODULE LIM ICC 10KA
003974
003974
LEGRAND
1 Pcs.
REPLACEMENT MODULE LIM ICC 10KA
Plug-in replacement modules for self-protected SPD - Cat.Nos 0 039 71/73
Replacement module for surge protector
Automation > Surge protection device for power supply systems
MOTOR CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)0.547
- Weight (g)75.00
Product characteristics
Replacement plug-in modulesFor self protected SPDs
- For self protected SPDs Cat.Nos 0 039 71/73
General characteristics
Class II (T2) low voltage SPDs with integrated protection- SPDs with integrated protection against overload currents and short-circuit currents
- SPDs compliant with EN/IEC 61643-11 standards
- For 230/400 VA power networks (50/60 Hz)
| Feature Name | Feature Value |
|---|---|
| System configuration TN-C-S (EF009933) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| Nominal voltage AC (EF004220) | 400 V |
| System configuration TN-S (EF009930) | No |
| Construction size (EF002566) | 1 modular spacing |
| System configuration other (EF009932) | Yes |
| System configuration TT (EF009931) | No |
| Signalling at the device (EF004241) | Optic |
| Voltage protection level (EF003525) | 1.2 kV |
| System configuration IT (EF009927) | No |
| System configuration TN-C (EF009929) | Yes |
| System configuration TN (EF009928) | Yes |
| Max. continuous voltage AC (EF004198) | 275 V |
| Integrated backup fuse (EF008797) | No |
| Voltage protection level L-N (EF004236) | 1 kV |
| Nominal discharge surge current (8/20) (EF004214) | 10 kA |
| Category type 2 (EF004230) | Yes |
| With remote signalling contact (EF000422) | No |
