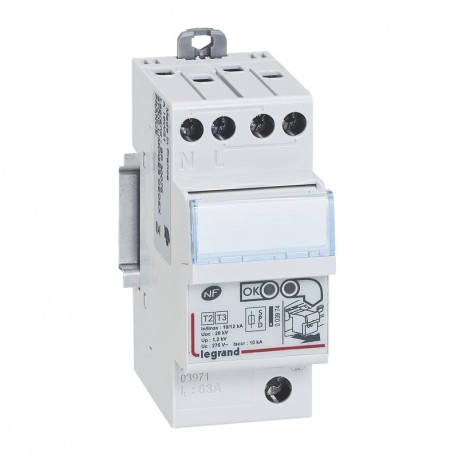

LEGRAND 003971 003971 LEGRAND LIM SOBRET 2P IMAX12KA ICC10KA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

003971 LEGRAND LIM SOBRET 2P IMAX12KA ICC10KA

003971

003971

LEGRAND

1 Pcs.

LIM SOBRET 2P IMAX12KA ICC10KA Self-protected SPD - for secondary distribution board - T2 -Imax 12 kA/pole -1P+N left Protected surge arrester Type 2 - 2P, combinable

Automation > Surge protection device for power supply systems
MOTOR CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 003971 surge protective device offers reliable transient overvoltage protection for standard electrical distribution boards. Industrial and commercial systems utilize protective devices of this caliber to prevent unexpected equipment downtime caused by grid irregularities.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • System configuration TN-C-S (EF009933): Yes
  • Degree of protection (IP) (EF005474): IP20
  • Nominal voltage AC (EF004220): 230 V
  • System configuration TN-S (EF009930): No
  • Construction size (EF002566): 2 modular spacing
  • System configuration other (EF009932): No
  • Mounting method (EF000003): DIN rail (top hat rail) 35 mm
  • System configuration TT (EF009931): Yes
  • Signalling at the device (EF004241): Optic
  • Number of conductors (without earthing) (EF001148): 2
  • Voltage protection level (EF003525): 1.2 kV
  • System configuration IT (EF009927): No
  • System configuration TN-C (EF009929): Yes
  • System configuration TN (EF009928): Yes
  • Max. continuous voltage AC (EF004198): 275 V
  • Integrated backup fuse (EF008797): Yes

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.369
  • Weight (g)159.00
Product characteristics
Protection for secondary distribution boards
  • Protection of sensitive equipment.
  • With plug-in modules and status indicators:
    • Green: SPD operational
    • Red: plug-in module need to be replaced
  • In: 10 kA/pole - Uc: 275 V~
  • Earthing systems: TT, TNS.
  • Cat. No. 0 039 71: SPD with Y connection both incoming and outgoing terminals at the top of the SPD, providing better protection against overvoltages
T2 self protected SPDs - Imax 12 kA/pole
  • 1P+N and 3P+N: L-N and N-PE protection modes (common and differential modes), the N pole being protected by encapsulated spark gaps. Also called 1+1 and 3+1.
  • Number of poles : 1P+N
  • Neutral position : Left
  • Integrated protection : Isc ? 10 kA
  • Number of modules : 2
General characteristics
Class II (T2) low voltage SPDs with integrated protection
  • SPDs with integrated protection against overload currents and short-circuit currents
  • SPDs compliant with EN/IEC 61643-11 standards
  • For 230/400 VA power networks (50/60 Hz)
