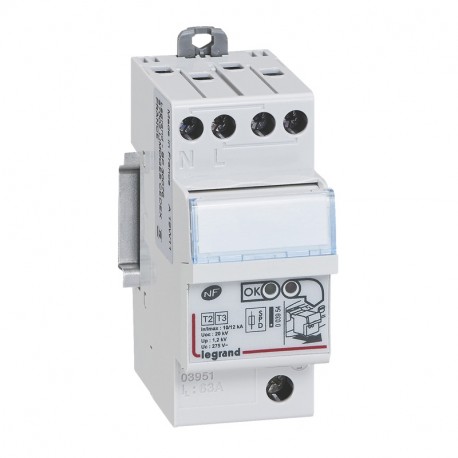

LEGRAND 003951 003951 LEGRAND LIMITER OVERVOLTAGE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

003951 LEGRAND LIMITER OVERVOLTAGE

003951

003951

LEGRAND

1 Pcs.

LIMITER OVERVOLTAGE Self-protected SPD - for consumer unit - T2 - Imax 12 kA/pole - 1P+N left Self-Protected Surge Limiter Type 2 - 2P

Automation > Surge protection device for power supply systems
MOTOR CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand part number 003951 is an overvoltage limiter designed to absorb damaging electrical transients and protect sensitive connected equipment. These devices are standard installations in modern control panels to prevent costly downtime from power fluctuations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • System configuration TN-C-S (EF009933): Yes
  • Degree of protection (IP) (EF005474): IP20
  • Nominal voltage AC (EF004220): 230 V
  • System configuration TN-S (EF009930): No
  • Construction size (EF002566): 2 modular spacing
  • System configuration other (EF009932): No
  • Mounting method (EF000003): DIN rail (top hat rail) 35 mm
  • System configuration TT (EF009931): Yes
  • Signalling at the device (EF004241): Optic
  • Number of conductors (without earthing) (EF001148): 2
  • Voltage protection level (EF003525): 1.2 kV
  • System configuration IT (EF009927): No
  • System configuration TN-C (EF009929): Yes
  • System configuration TN (EF009928): Yes
  • Max. continuous voltage AC (EF004198): 275 V
  • Integrated backup fuse (EF008797): Yes

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.369
  • Weight (g)159.00
Product characteristics
Protection for consumer units
  • For residential and small commercial installations
  • With plug-in modules and status indicators:
    • Green: SPD operational
    • Red: plug-in module need to be replaced
T2 self protected SPDs - Imax 12 kA/pole
  • For installations with low risk level (in urban areas, underground power supplies, etc.)
  • In: 10 kA/pole - Uc: 275 V~
  • Earthing systems: TT, TNS
  • Cat. No. 0 039 51: SPD with Y connection (both incoming and outgoing terminals at the top of the SPD) providing better protection against overvoltages
  • 1P+N and 3P+N: L-N and N-PE protection modes (common and differential modes), the N pole being protected by encapsulated spark gaps. Also called 1+1 and 3+1.
  • Number of poles : 1P+N
  • Neutral position : Left
  • Integrated protection : Isc ? 6 kA
  • Number of modules : 2
General characteristics
Class II (T2) low voltage SPDs with integrated protection
  • SPDs with integrated protection against overload currents and short-circuit currents
  • SPDs compliant with EN/IEC 61643-11 standards
  • For 230/400 VA power networks (50/60 Hz)
