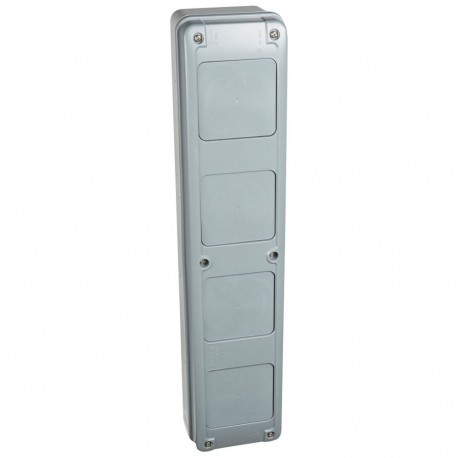

LEGRAND 001918 001918 LEGRAND CELL MULTI-PURPOSE BOX 3FILA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

001918 LEGRAND CELL MULTI-PURPOSE BOX 3FILA

001918

001918

LEGRAND

1 Pcs.

CELL MULTI-PURPOSE BOX 3FILA Multifunction sleeve - vertical - for 3 rows cabinets Vertical Multifunction Cell for 3-Row Plexo³ Enclosures

Automation > Small distribution board
DIN MODULAR BOXES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand 001918 multi-purpose box serves as a robust surface-mounted enclosure built to house multi-row electrical components in demanding industrial spaces. These protective housings ensure that internal automation hardware remains shielded from environmental hazards.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 622 mm
  • Inner depth (EF001131): 48.5 mm
  • Transparent cover/door (EF006244): No
  • Degree of protection (IP) (EF005474): IP65
  • DIN-rail (EF001134): No
  • Housing material (EF001596): Plastic
  • With lock (EF006306): No
  • Mounting method (EF000003): Surface mounted
  • Number of rows (EF000266): 4
  • Cover model (EF009212): With notch
  • Signal passing door (EF015941): Yes
  • RAL-number (EF000116): 7046
  • Built-in depth (EF000218): 119 mm
  • Type of covering (EF000339): Cover
  • With mounting plate (EF000118): No
  • Extension possible (EF001088): Yes

More info

▲
  • Pack (number of units)1
  • Volume (dm3)13.009
  • Weight (g)1 718.00
Product characteristics
Multifunction sleeves
  • Supplied with hinges connecting the cover to the back of the cabinet
  • For use with 12 and 18-module cabinets using joining kit Cat.No 0 019 67
  • Can be fitted with control units and accessories: P17 16 A and 32 A sockets with standard fixing centres, flush-mounted IP 55 Plexo wiring accessories, Osmoz, modular rail at the back of the box
Vertical
  • For 3 rows cabinets
General characteristics
Plexo³ - IP 65 weatherproof cabinets, multifunction sleeves and accessories
  • Self-extinguishing: resistance to incandescent wire 650°C.
  • Allows to achieve assemblies conform to IEC 61 439 - 3
  • Weatherproof cabinets - IP 65 - IK 09 - Class II
  • Door and cabinet fully reversible. Removable chassis and faceplates from 2-row versions up
  • 2-position rail for modular products and moulded cases. Spacing between rails 150 mm
  • Can be fitted with perforated plates and solid faceplates for mounting non-modular products
  • Lockable door handle, sealable cover and faceplate
  • Shock-resistant polystyrene material
  • Box colour light grey L750A, cover colour dark grey R746A
  • Supplied without terminal blocks
