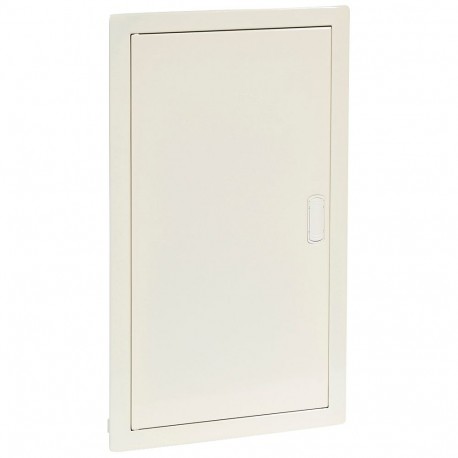

LEGRAND 001533 001533 LEGRAND BOX MOD. EMP. PM 3X12 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

001533 LEGRAND BOX MOD. EMP. PM 3X12

001533

001533

LEGRAND

1 Pcs.

BOX MOD. EMP. PM 3X12 Modular box in recessed Nedbox with metal door-slim design - 3 rows of 12+2 mód. Nedbox modular recessed box with metal door - 3 rows 12+2mod

Automation > Small distribution board
DIN MODULAR BOXES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 001533 is a flush mounted modular distribution box engineered to house protective devices and terminal blocks within wall cavities. Such enclosures are standard components in electrical distribution infrastructure, keeping breakers organized and safely enclosed. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 555 mm
  • Type of door (EF004464): EV000426
  • Inner depth (EF001131): 47.5 mm
  • Transparent cover/door (EF006244): No
  • Degree of protection (IP) (EF005474): IP30
  • DIN-rail (EF001134): Yes
  • Housing material (EF001596): Steel
  • With lock (EF006306): No
  • Mounting method (EF000003): Flush mounted
  • Number of rows (EF000266): 3
  • Cover model (EF009212): Closed
  • Signal passing door (EF015941): Yes
  • RAL-number (EF000116): 9003
  • Built-in depth (EF000218): 87 mm
  • Type of covering (EF000339): Door
  • With mounting plate (EF000118): No

More info

▲

Product features

Boxes recessed - For hollow walls or conventional - 12 modules per row (+2 books) - Equipped with reversible doors with handles suitable for locks with key ref. 0 014 91 - Supplied with terminal block connection auto-IP 2X for drivers of protection, the legs of fixation for walls and prefabricated seals separable by module and half-module - Wheelbase between rails 125 mm With metal doors low profile lift table-white RAL 9010 - Frame and door, painted epoxy - Number of rows: 3 - Number of modules: 36 + 6 - Dimensions of the hollow flush mount (mm): 555x330x86

General characteristics

Flush mount modular boxes Nedbox - self-extinguishing properties: resistance to incandescent thread 750° according to standard en 60695-2-11. In accordance with the regulations for installation in places of public concurrence - Class II - IP 40 - IK 07 - Meet the standard IEC 62 208: allows you to perform sets that conform to the IEC 61 439-3
