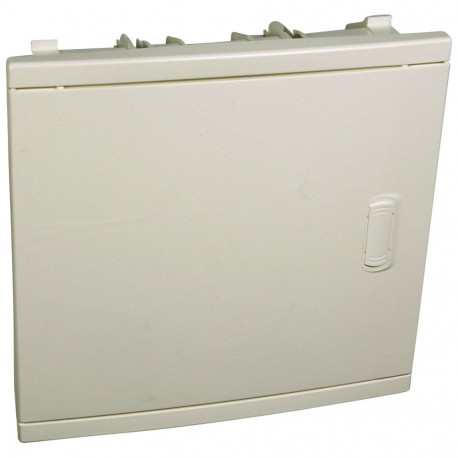

LEGRAND 001511 001511 LEGRAND BOX MOD. EMP. PO 1X12 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

001511 LEGRAND BOX MOD. EMP. PO 1X12

001511

001511

LEGRAND

1 Pcs.

BOX MOD. EMP. PO 1X12 Modular box in recessed Nedbox with door insulation-slim design - 1 row of 12+2 mód. Nedbox modular recessed box with insulating door - 1 row 12+2mod

Automation > Small distribution board
DIN MODULAR BOXES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand 001511 compact distribution board provides a reliable flush-mounted enclosure solution designed to organize and protect single rows of modular DIN-rail control hardware. Such electrical boxes maintain neat, accessible breaker layouts within residential or commercial building walls.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 305 mm
  • Type of door (EF004464): EV000426
  • Inner depth (EF001131): 47.5 mm
  • Transparent cover/door (EF006244): No
  • Degree of protection (IP) (EF005474): IP30
  • DIN-rail (EF001134): Yes
  • Housing material (EF001596): Plastic
  • With lock (EF006306): No
  • Mounting method (EF000003): Flush mounted
  • Number of rows (EF000266): 1
  • Cover model (EF009212): Closed
  • Signal passing door (EF015941): Yes
  • RAL-number (EF000116): 9010
  • Built-in depth (EF000218): 87 mm
  • Type of covering (EF000339): Door
  • With mounting plate (EF000118): No

More info

▲

Product features

Boxes recessed - For hollow walls or conventional - 12 modules per row (+2 books) - Equipped with reversible doors with handles suitable for locks with key ref. 0 014 91 - Supplied with terminal block connection auto-IP 2X for drivers of protection, the legs of fixation for walls and prefabricated seals separable by module and half-module - Wheelbase between rails 125 mm With door insulating white RAL 9010 - Number of rows: 1 - Number of modules: 12 + 2 - Dimensions of the hollow flush mount (mm): 305x330x86

General characteristics

Flush mount modular boxes Nedbox - self-extinguishing properties: resistance to incandescent thread 750° according to standard en 60695-2-11. In accordance with the regulations for installation in places of public concurrence - Class II - IP 40 - IK 07 - Meet the standard IEC 62 208: allows you to perform sets that conform to the IEC 61 439-3
