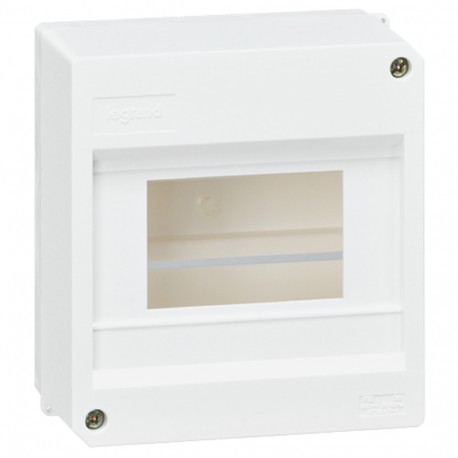

LEGRAND 001358 001358 LEGRAND CUBREBORNAS SURFACE 6 MOD. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

001358 LEGRAND CUBREBORNAS SURFACE 6 MOD.

001358

001358

LEGRAND

1 Pcs.

CUBREBORNAS SURFACE 6 MOD. Terminal shield box - IP30 - without terminal block - 6 modules IP30 terminal block box - A utoextinguishable 650 ºC - 6mod - White RAL 9010

Automation > Small distribution board
DIN MODULAR BOXES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed by Legrand, the 001358 LEGRAND CUBREBORNAS SURFACE 6 MOD. functions as a compact terminal cover used to insulate and protect electrical connection points in modular installations. Terminal enclosures and covers prevent accidental contact with live conductors while keeping wiring hubs neatly organized.

Please note that current pricing, availability, and delivery lead times are confirmed per enquiry through an RFQ.

  • Height (EF000040): 140 mm
  • Inner depth (EF001131): 48 mm
  • Transparent cover/door (EF006244): No
  • Degree of protection (IP) (EF005474): IP30
  • DIN-rail (EF001134): No
  • Housing material (EF001596): Plastic
  • With lock (EF006306): No
  • Mounting method (EF000003): Surface mounted
  • Number of rows (EF000266): 1
  • Cover model (EF009212): With notch
  • Signal passing door (EF015941): Yes
  • RAL-number (EF000116): 9010
  • Built-in depth (EF000218): 64 mm
  • Type of covering (EF000339): Cover
  • With mounting plate (EF000118): No
  • Extension possible (EF001088): No

More info

▲
  • Pack (number of units)20
  • Volume (dm3)28.00
  • Weight (g)3 397.00
Product characteristics
Terminal shield boxes
  • Capacity in 17.5 mm modules : 6 modules
  • Dimensions - Height x Width x Thickness : 140 x 130 x 68 mm
General characteristics
Surface mounting terminal shield boxes - 2 to 6 modules
  • IP 30
  • Self extinguishing: 650° C
  • Supplied without terminal blocks
  • Class II
  • White RAL 9003
  • Covers can be sealed
  • Allows to achieve assemblies conform to IEC 61439-3

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
