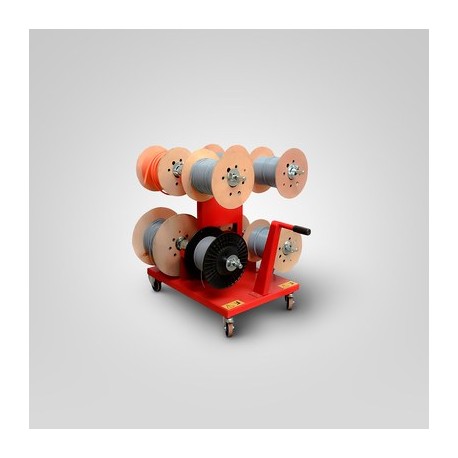

85001631 LAPP Drum cart
85001631
85001631
LAPP
1 unit
Automation > Automation and operation
Automation and operation
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Mobile trolley for transporting, storing and unwinding cable coils.
By means of an additional support, the trolley can be extended to carry 4 additional coils.
proceeds
- Mobile and flexible storage solution
- Convenient transport and easy unroiling of multiple coils at the installation site
Scope of use
- Transport, store and unwind cable drums
Product features
- Mobile trolley for transporting and storing eight coils
- Pull and guide the cart with the help of a drawbar
- Suitable for coils with width up to 420 mm, sides with a diameter of 400 and 500 mm, as well as a shaft with a hole of 80 mm
- Equipped with shafts (Ø 25 mm) for coil fastening, with centering crowns
- Optionally available: coil shaft brake (reference 85008082)
Dimensions
- L=1250 mm, W=1100 mm, L=1150 mm
General data
- Weight (without coils): 90 kg
- Maximum load: 400 kg (50 kg per coil)
