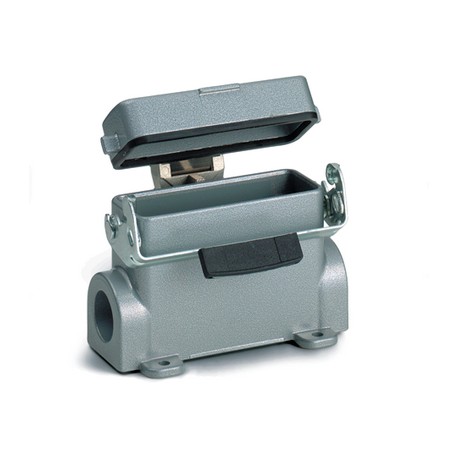

LAPP 79456200 79456200 H-A 10 SDRL M20 ZW. BOX MOUNT BASE LAPP H-A 10 SDRL M20 ZW. BOX MOUNT BASE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

79456200 H-A 10 SDRL M20 ZW. BOX MOUNT BASE LAPP H-A 10 SDRL M20 ZW. BOX MOUNT BASE

79456200

79456200

H-A 10 SDRL M20 ZW. BOX MOUNT BASE

LAPP

5 Pcs.

H-A 10 SDRL M20 ZW. BOX MOUNT BASE EPIC® H-A 10 SDRL-LB

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Functioning as an intermediate box mount base, the Lapp 79456200 H-A 10 SDRL M20 ZW anchors industrial multi-pin connector assemblies onto machine housings. Surface bases offer stable mechanical interfaces that withstand routine vibration and mechanical stress in automated industrial operations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Housing: aluminium alloy, grey
  • Lever: zinc-plated steel
  • Sealing: NBR
  • NEMA 250, UL50E: 12, 4 (latched)
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The compact base housing with 2 cable entries has a space-saving design that is suitable for applications in a restricted space.

  • Metal lid with sturdy hinge
  • For easy introduction of two cables
  • Protection rating UL50E tested

Benefits

  • Small and space-saving for narrow available space

Application range

  • Machine and equipment manufacturing
  • Control engineering
  • Electronic laboratory

Product features

  • Surface-mount base
  • Single lever
  • 2 cable entries
  • Metal cover

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: aluminium alloy, grey
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12, 4 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
