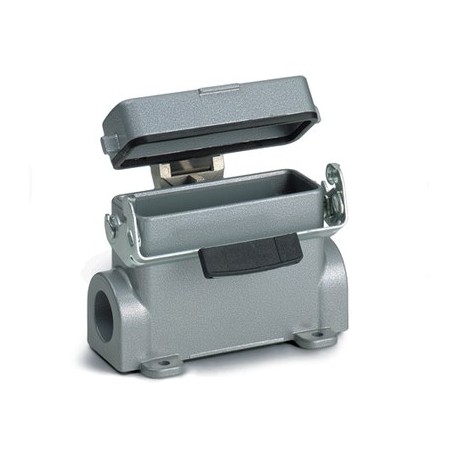

79455200 H-A 10 SDR M20 ZW. BOX MOUNT BASE LAPP H-A 10 SDR M20 ZW. BOX MOUNT BASE
79455200
79455200
H-A 10 SDR M20 ZW. BOX MOUNT BASE
LAPP
5 Pcs.
Connectors > Housing for rectangular connectors
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Providing a fixed mounting point for electrical connector inserts, the Lapp 79455200 H-A 10 SDR M20 ZW. BOX MOUNT BASE LAPP H-A 10 SDR M20 ZW. BOX MOUNT BASE functions as an industrial box mount base. Such bases are typically secured to enclosure walls or machine housings to facilitate clean cable entry points and secure latching for modular cabling. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Housing: aluminium alloy, grey
- Lever: zinc-plated steel
- Sealing: NBR
- NEMA 250, UL50E: 12, 4 (latched)
- Certified production control: VDE-REG. no.: B437
- UL-tested: UL File Number: E75770
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
More info
▲The robust metal housing for rectangular connectors has a single lever and a cable entry and can be used in control systems.
- Metal lid with sturdy hinge
- Protection rating UL50E tested
Benefits
- Small and space-saving for narrow available space
Application range
- Machine and equipment manufacturing
- Control engineering
- Electronic laboratory
Product features
- Surface-mount base
- Single lever
- 1 cable entry
- Metal cover
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
Material
- Housing: aluminium alloy, grey
Lever: zinc-plated steel
Sealing: NBR
Protection rating
- IP 65 (latched)
- NEMA 250, UL50E: 12, 4 (latched)
VDE-tested
- Certified production control: VDE-REG. no.: B437
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +100°C, short-term up to +125°C
