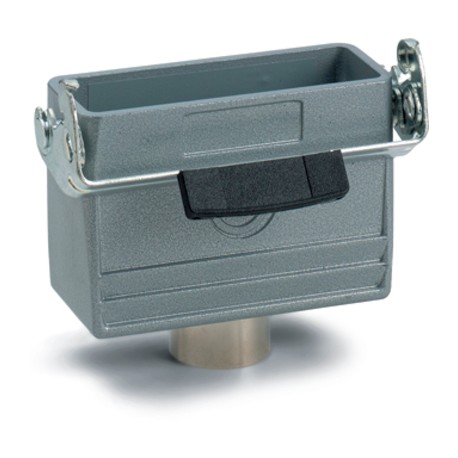

LAPP 79450000 79450000 EPIC H-A 10 TBF M25 N.GEW. KUPPLUNGSGEHA LAPP EPIC H-A 10 TBF M25 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

79450000 EPIC H-A 10 TBF M25 N.GEW. KUPPLUNGSGEHA LAPP EPIC H-A 10 TBF M25

79450000

79450000

EPIC H-A 10 TBF M25 N.GEW. KUPPLUNGSGEHA

LAPP

5 Pcs.

EPIC H-A 10 TBF M25 EPIC® H-A 10 TBF-LB

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed as a cable coupler housing, the Lapp 79450000 EPIC H-A 10 TBF M25 joins discrete cable runs securely within complex industrial wiring setups. Coupler housings extend existing electrical lines by bridging plug inserts and receptacle modules safely away from physical strain. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Housing: aluminium alloy, grey
  • Lever: zinc-plated steel
  • Sealing: NBR
  • NEMA 250, UL50E: 12, 4 (latched)
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The compact housing for rectangular connectors has a direct cable entry and can be ordered with or without a neck. The low housing has 1 single lever.

Protection rating UL50E tested

Benefits

  • Small and space-saving for narrow available space

Application range

  • Machine and equipment manufacturing
  • Control engineering
  • Electronic laboratory

Product features

  • Cable coupler hood, low version
  • Single lever
  • Straight cable entry
  • Versions with / without neck

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: aluminium alloy, grey
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12, 4 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C

Product Datasheet
