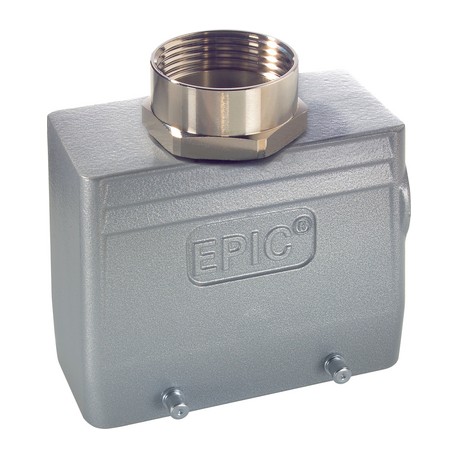

LAPP 79150600 79150600 H-B 24 TGH M32 N.GEW. HOOD LAPP H-B 24 TGH M32 N.GEW. HOOD View larger
Images are for illustrative purposes only. Please refer to data sheet for details

79150600 H-B 24 TGH M32 N.GEW. HOOD LAPP H-B 24 TGH M32 N.GEW. HOOD

79150600

79150600

H-B 24 TGH M32 N.GEW. HOOD

LAPP

5 Pcs.

H-B 24 TGH M32 N.GEW. HOOD EPIC® H-B 24 TGH

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 79150600 H-B 24 TGH M32 N.GEW. HOOD from Lapp is a robust housing for industrial connectors, engineered to protect delicate internal wiring and connection points from harsh environmental factors in factory floors and machinery setups. Such connector enclosures provide a secure mechanical enclosure that shields plugs and receptacles against dust, moisture, and accidental impacts, ensuring uninterrupted signal or power transmission. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Housing: powder-coated aluminium alloy, grey
  • Lever: zinc-plated steel
  • Sealing: NBR
  • NEMA 250, UL50E: 12, 4 (latched)
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The robust high metal housing contains the pivots for a double lever, a direct cable entry and can be supplied with or without a neck.

  • Non-slip ridges for comfortable disconnecting
  • More interior space for wiring
  • Protection rating UL50E tested

Benefits

  • Ideal for many applications due to a wide range of housings and inserts
  • M40 housing extension on M50 with SKINTOP 53112083 possible (clamping range 27 - 35 mm)

Application range

  • Plant engineering
  • Light & sound technology
  • Plastics industry

Product features

  • Hood, high version
  • Bolts for double lever
  • Straight cable entry
  • Versions with / without neck

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated aluminium alloy, grey
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12, 4 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
