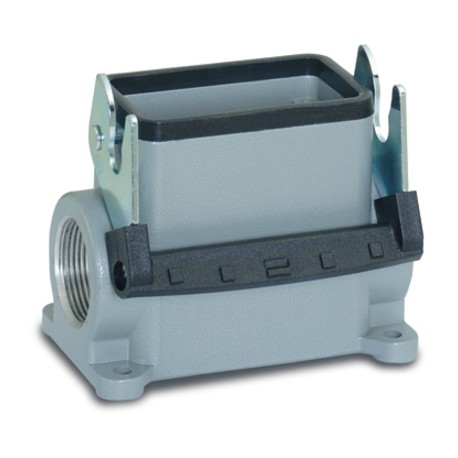

LAPP 79111200 79111200 H-B 16 SGRLH-LB M25 ZW. BOX MOUNT BASE LAPP H-B 16 SGRLH-LB M25 ZW. BOX MOUNT BASE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

79111200 H-B 16 SGRLH-LB M25 ZW. BOX MOUNT BASE LAPP H-B 16 SGRLH-LB M25 ZW. BOX MOUNT BASE

79111200

79111200

H-B 16 SGRLH-LB M25 ZW. BOX MOUNT BASE

LAPP

5 Pcs.

H-B 16 SGRLH-LB M25 ZW. BOX MOUNT BASE EPIC® H-B 16 SGRLH-LB

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Providing a rugged enclosure for industrial connector layouts, this box mount base defends complex wiring installations against environmental hazards. Parts like the Lapp 79111200 help maintain electrical integrity by enclosing connection interfaces on machinery panels and control boxes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Housing: powder-coated aluminium alloy, grey
  • Lever: zinc-plated steel
  • Sealing: NBR
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

Benefits

  • The housing standard. Wide choice for all applications
  • More interior space for wiring

Application range

  • Plant engineering
  • Light & sound technology
  • Plastics industry

Product features

  • Surface-mount base, high version
  • Single lever
  • 2 cable entries

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated aluminium alloy, grey
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • UL50 Type 12 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
