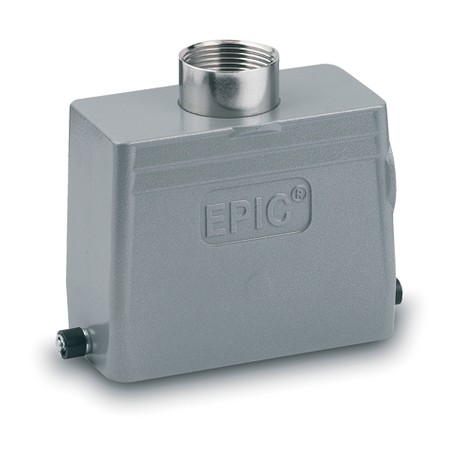

79094400 H-B 16 TGH-RO M32 N.GEW. HOOD LAPP H-B 16 TGH-RO M32 N.GEW. HOOD
79094400
79094400
H-B 16 TGH-RO M32 N.GEW. HOOD
LAPP
5 Pcs.
Connectors > Housing for rectangular connectors
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An extended hood for industrial connectors offers added internal volume to accommodate bulky wiring looms and complex cable terminations within automated systems. The Lapp 79094400 high-version component protects critical electrical junctions against dust, moisture, and physical damage. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- High version: More interior space for wiring
- Housing: powder-coated aluminium alloy, grey
- Lever: zinc-plated steel
- Sealing: NBR
More info
▲The robust metal housing with a direct cable entry and pivots for a single lever is available in a version with or without a neck.
- Non-slip ridges for comfortable disconnecting
- Protection rating UL50E tested
- High version: More interior space for wiring
Benefits
- The housing standard. Wide choice for all applications
- More interior space for wiring
- M40 housing extension on M50 with SKINTOP 53112083 possible (clamping range 27 - 35 mm)
Application range
- Plant engineering
- Light & sound technology
- Plastics industry
Product features
- Hood, high version
- Reels for single lever
- Straight cable entry
- Versions with / without neck
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
Material
- Housing: powder-coated aluminium alloy, grey
Lever: zinc-plated steel
Sealing: NBR
Protection rating
- IP 65 (latched)
- UL50 Type 12 (latched)
VDE-tested
- Certified production control: VDE-REG. no.: B437
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +100°C, short-term up to +125°C
