View larger
Images are for illustrative purposes only. Please refer to data sheet for details

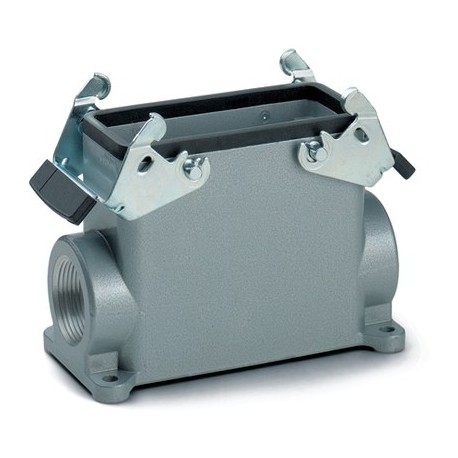

79085200 H-B 16 SGRH M25 ZW. BOX MOUNT BASE LAPP H-B 16 SGRH M25 ZW. BOX MOUNT BASE
79085200
79085200
H-B 16 SGRH M25 ZW. BOX MOUNT BASE
LAPP
5 Pcs.
H-B 16 SGRH M25 ZW. BOX MOUNT BASE
EPIC® H-B 16 SGRH
Connectors > Housing for rectangular connectors
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Two double levers, high base housing and a cable entry form the robust universal housing which is suitable for use in the plastics industry.
- More interior space for wiring
- Double lever version with 2 levers for increased safety
- Protection rating UL50E tested
Benefits
- The housing standard. Wide choice for all applications
Application range
- Plant engineering
- Light & sound technology
- Plastics industry
Product features
- Surface-mount base, high version
- Dual levers
- 1 cable entry
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
Material
- Housing: powder-coated aluminium alloy, grey
Lever: zinc-plated steel
Sealing: NBR
Protection rating
- IP 65 (latched)
- NEMA 250, UL50E: 12, 4 (latched)
VDE-tested
- Certified production control: VDE-REG. no.: B437
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +100°C, short-term up to +125°C
