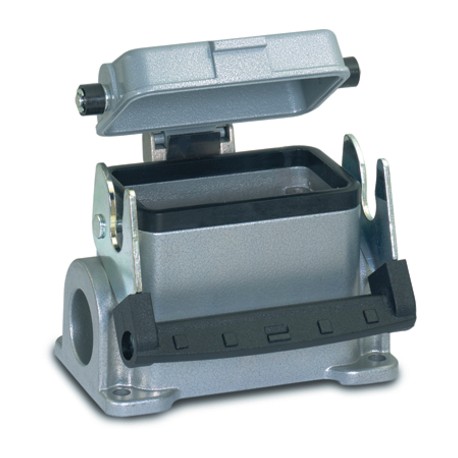

LAPP 79064600 79064600 H-B 10 SDR-LB M25 ZW. BOX MOUNT BASE LAPP H-B 10 SDR-LB M25 ZW. BOX MOUNT BASE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

79064600 H-B 10 SDR-LB M25 ZW. BOX MOUNT BASE LAPP H-B 10 SDR-LB M25 ZW. BOX MOUNT BASE

79064600

79064600

H-B 10 SDR-LB M25 ZW. BOX MOUNT BASE

LAPP

10 Pcs.

H-B 10 SDR-LB M25 ZW. BOX MOUNT BASE EPIC® H-B 10 SDR-LB

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Providing a secure mounting platform for heavy-duty electrical wiring, the Lapp 79064600 H-B 10 SDR-LB M25 ZW. BOX MOUNT BASE encloses and protects modular connector blocks against harsh operating environments. Such fixed bases are routinely installed on industrial machinery, switchgear cabinets, and assembly lines to maintain reliable circuit continuity. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Housing: powder-coated aluminium alloy, grey
  • Lever: zinc-plated steel
  • Sealing: NBR
  • NEMA 250, UL50E: 12 (latched)
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The robust universal low housing has a cable entry and a single lever and is ideal for use in the plastics industry.

  • Single Lever version for quick locking and simple unlocking with lifting aid
  • Metal lid with sturdy hinge
  • Protection rating UL50E tested

Benefits

  • The smallest housing with single and double lever. The right housing is available for every application

Application range

  • Plant engineering
  • Light & sound technology
  • Plastics industry

Product features

  • Surface-mount base, low version
  • Single lever
  • 1 cable entry
  • Metal cover

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated aluminium alloy, grey
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
