View larger
Images are for illustrative purposes only. Please refer to data sheet for details

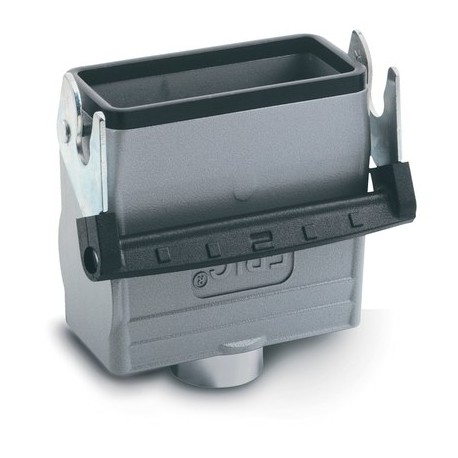

79042600 H-B 10 TBFH-LB M32 N.GEW. CPL. HOOD LAPP H-B 10 TBFH-LB M32 N.GEW. CPL. HOOD
79042600
79042600
H-B 10 TBFH-LB M32 N.GEW. CPL. HOOD
LAPP
10 Pcs.
H-B 10 TBFH-LB M32 N.GEW. CPL. HOOD
EPIC® H-B 10 TBFH-LB
Connectors > Housing for rectangular connectors
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲The metal housing with a single lever and a direct cable entry is suitable for use in lighting and sound systems.
- More interior space for wiring
- Single Lever version for quick locking and simple unlocking with lifting aid
- Protection rating UL50E tested
Benefits
- The smallest housing with single and double lever. The right housing is available for every application
Application range
- Plant engineering
- Light & sound technology
- Plastics industry
Product features
- Cable coupler hood, high version
- Single lever
- Straight cable entry
- Versions with / without neck
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
Material
- Housing: powder-coated aluminium alloy, grey
Lever: zinc-plated steel
Sealing: NBR
Protection rating
- IP 65 (latched)
- NEMA 250, UL50E: 12 (latched)
VDE-tested
- Certified production control: VDE-REG. no.: B437
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +100°C, short-term up to +125°C
