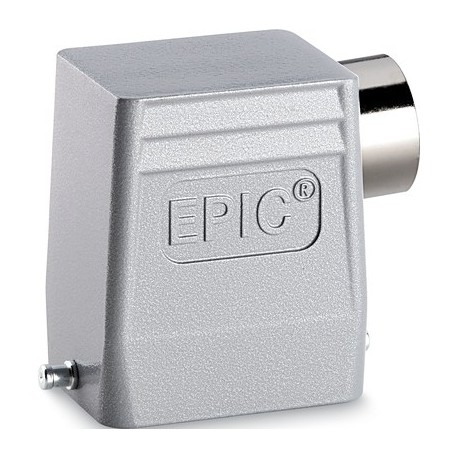

LAPP 79022200 79022200 H-B 6 TSH M25 N.GEW. HOOD LAPP H-B 6 TSH M25 N.GEW. HOOD View larger
Images are for illustrative purposes only. Please refer to data sheet for details

79022200 H-B 6 TSH M25 N.GEW. HOOD LAPP H-B 6 TSH M25 N.GEW. HOOD

79022200

79022200

H-B 6 TSH M25 N.GEW. HOOD

LAPP

10 Pcs.

H-B 6 TSH M25 N.GEW. HOOD EPIC® H-B 6 TSH

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Serving as a protective enclosure, the Lapp 79022200 H-B 6 TSH M25 N.GEW. HOOD acts as a standard housing for industrial connectors utilized in modular electrical distribution setups. Such protective hoods shield delicate multi-pin connector blocks from liquid splashes, particulate accumulation, and unintended dislodgement in industrial machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Housing: powder-coated aluminium alloy, grey
  • Bolts: steel, coated
  • NEMA 250, UL50E: 12, 4 (latched)
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The robust metal housing with pivots for a single lever and a side cable entry is suitable for use in the plastics industry and investment construction.

  • Non-slip ridges for comfortable disconnecting
  • More interior space for wiring
  • Protection rating UL50E tested

Benefits

  • The smallest housing out of the H-B series. For inserts with high electrical properties

Application range

  • Plant engineering
  • Control engineering
  • Plastics industry

Product features

  • Hood, high version
  • Bolts for single lever
  • Side cable entry
  • Versions with / without neck

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated aluminium alloy, grey
    Bolts: steel, coated

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12, 4 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
