View larger
Images are for illustrative purposes only. Please refer to data sheet for details

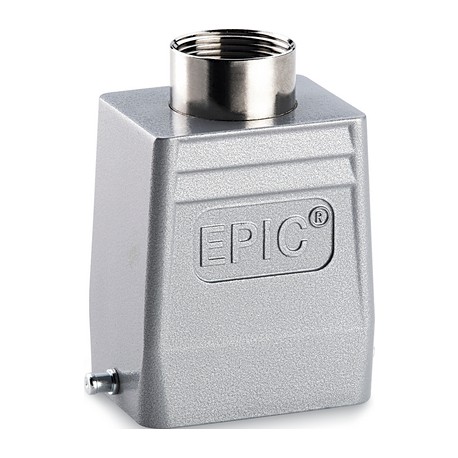

79020400 H-B 6 TGH M32 N.GEW. HOOD LAPP H-B 6 TGH M32 N.GEW. HOOD
79020400
79020400
H-B 6 TGH M32 N.GEW. HOOD
LAPP
10 Pcs.
H-B 6 TGH M32 N.GEW. HOOD
EPIC® H-B 6 TGH
Connectors > Housing for rectangular connectors
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲The robust metal housing is ideal for use in investment construction and the plastics industry and has a direct cable entry.
- Non-slip ridges for comfortable disconnecting
- More interior space for wiring
- Protection rating UL50E tested
Benefits
- The smallest housing out of the H-B series. For inserts with high electrical properties
Application range
- Plant engineering
- Control engineering
- Plastics industry
Product features
- Hood, high version
- Bolts for single lever
- Straight cable entry
- Versions with / without neck
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
Material
- Housing: powder-coated aluminium alloy, grey
Bolts: steel, coated
Protection rating
- IP 65 (latched)
- NEMA 250, UL50E: 12, 4 (latched)
VDE-tested
- Certified production control: VDE-REG. no.: B437
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +100°C, short-term up to +125°C
