View larger
Images are for illustrative purposes only. Please refer to data sheet for details

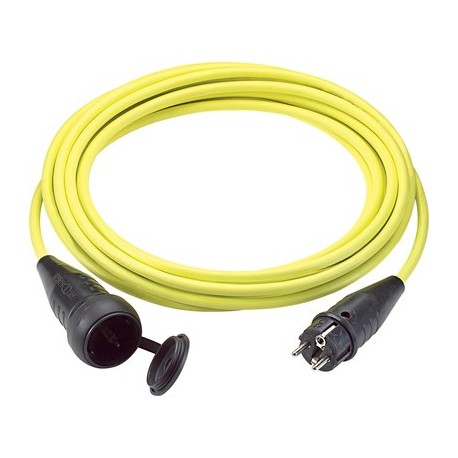

73222322 ÖLFLEX PLUG 540 P 3G1,5 10m YE LAPP ÖLFLEX PLUG 540 P 3G1,5 10m YE
73222322
73222322
ÖLFLEX PLUG 540 P 3G1,5 10m YE
LAPP
1 Pcs.
ÖLFLEX PLUG 540 P 3G1,5 10m YE
ÖLFLEX® PLUG Extension Cable 540 P safety yellow*
Automation > Power cord
Spiral cables
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲ÖLFLEX® PLUG Extension cable 540 P safety yellow, 3-core, PUR, IP44 straight plug and coupling
Application range
- Mechanical engineering
- Construction industry
- Agricultural equipment
- In damp interiors or outdoors
Product features
- Other lengths, customised versions, cable types and plug versions are available upon request
Product Make-up
- Mounted, straight earthing-type plug (16 amp., 250 V, solid rubber, colour: black) in accordance with DIN 49440/441, protection rating: IP 44
- Mounted, straight earthing-type coupling with rubber cover (16 A, 250 V, solid rubber, colour: black) in accordance with DIN 49440/441, protection rating: IP 44
Classification ETIM 5
- ETIM 5.0 Class-ID: EC001576
- ETIM 5.0 Class-Description: Power cord
Classification ETIM 6
- ETIM 6.0 Class-ID: EC001576
- ETIM 6.0 Class-Description: Power cord
Nominal voltage
- U0: 250 V AC
