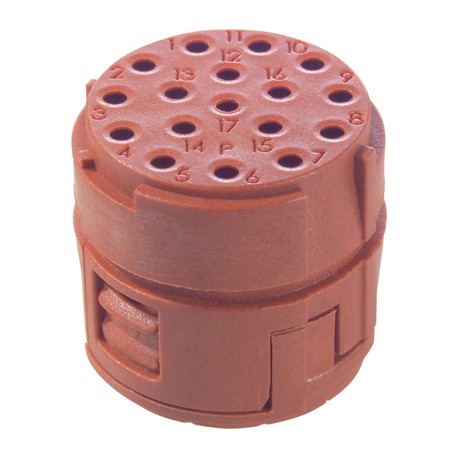

EPIC SIGNAL M23 17E (5) EPIC® SIGNAL M23 Inserts 17 pole

Connectors > Contact insert for rectangular connectors
EPIC Round

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Lapp 73008500 EPIC SIGNAL M23 17E contact insert for industrial connectors offers robust pin arrangement for circular instrumentation cabling. Industrial facilities utilize these inserts within sensor networks and automated feedback loops to ensure uninterrupted data flow under standard operating conditions. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • according to IEC 61984: 50 V
  • Crimp termination: 0.14 - 1.0 mm²
  • Solder termination: up to 1.0 mm²
  • UL File Number: E249137
  • ETIM 5.0 Class-ID: EC000438
  • ETIM 5.0 Class-Description: Contact insert for industrial connectors
  • ETIM 6.0 Class-ID: EC000438
  • ETIM 6.0 Class-Description: Contact insert for industrial connectors

More info

▲

EPIC® SIGNAL M23 Inserts 17 pole for M23 circular connector series

Made in Germany

Benefits

  • Universal further processing of the M23 inserts through different packaging units. Fully assembled with suitable solder contacts or unpopulated for individual assembly with crimp or solder contacts

Application range

  • Plant engineering
  • Measurement and control technology
  • Apparatus construction

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000438
  • ETIM 5.0 Class-Description: Contact insert for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000438
  • ETIM 6.0 Class-Description: Contact insert for industrial connectors

Rated voltage (V)

  • according to IEC 61984: 50 V

Rated impulse voltage

  • 0,8 kV

Rated current (A)

  • 7 A

Pollution degree

  • 3

Contact resistance

  • < 4 mOhm

Contacts

  • Gold-plated brass

Number of contacts

  • 17
  • 17*1mm contacts

Termination methods

  • Crimp termination: 0.14 - 1.0 mm²
  • Solder termination: up to 1.0 mm²

Cycle of mechanical operation

  • 100

VDE-tested

  • Certified production control: VDE-REG. no. C24 (according to EN 61984, SELV according to DIN VDE 0100-410 has to be guaranteed)
  • UL File Number: E249137

Temperature range

  • -25°C up to +125°C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
