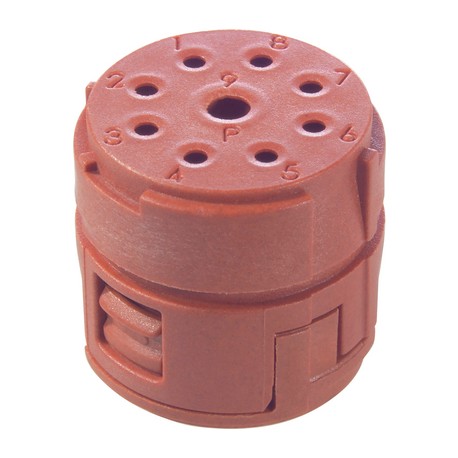

EPIC SIGNAL M23 8+1E SLM (5) EPIC® SIGNAL M23 Inserts 8+1 pole

Connectors > Contact insert for rectangular connectors
EPIC Round

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This item is a Lapp 73002744 EPIC SIGNAL M23 8+1E SLM signal contact insert built for modular circular connector shells. Technicians deploy these inserts to manage mixed power and signal transmission lines within automated production equipment. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • according to IEC 61984: 150 V
  • Crimp termination: 0.14 - 1.0 mm² (1.0 - 2.5 mm² for 2-mm contact)
  • Solder termination: up to 1.0 mm² (up to 2.5 mm² for 2-mm contact)
  • UL File Number: E249137
  • ETIM 5.0 Class-ID: EC000438
  • ETIM 5.0 Class-Description: Contact insert for industrial connectors
  • ETIM 6.0 Class-ID: EC000438
  • ETIM 6.0 Class-Description: Contact insert for industrial connectors

More info

▲

EPIC® SIGNAL M23 Inserts 8+1 pole for M23 circular connector series

Made in Germany

Benefits

  • Universal further processing of the M23 inserts through different packaging units. Fully assembled with suitable solder contacts or unpopulated for individual assembly with crimp or solder contacts

Application range

  • Plant engineering
  • Measurement and control technology
  • Apparatus construction

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000438
  • ETIM 5.0 Class-Description: Contact insert for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000438
  • ETIM 6.0 Class-Description: Contact insert for industrial connectors

Rated voltage (V)

  • according to IEC 61984: 150 V

Rated impulse voltage

  • 2.5 kV

Rated current (A)

  • 20 A (2 mm contact)
  • 7 A (1 mm contacts)

Pollution degree

  • 3

Contact resistance

  • < 4 mOhm

Contacts

  • Gold-plated brass

Number of contacts

  • 8 + 1
  • 8*1mm + 1*2mm contacts

Termination methods

  • Crimp termination: 0.14 - 1.0 mm²
    (1.0 - 2.5 mm² for 2-mm contact)
  • Solder termination: up to 1.0 mm²
    (up to 2.5 mm² for 2-mm contact)

Cycle of mechanical operation

  • 100

VDE-tested

  • Certified production control: VDE-REG. no. C24 (according to EN 61984, SELV according to DIN VDE 0100-410 has to be guaranteed)
  • UL File Number: E249137

Temperature range

  • -25°C up to +125°C
