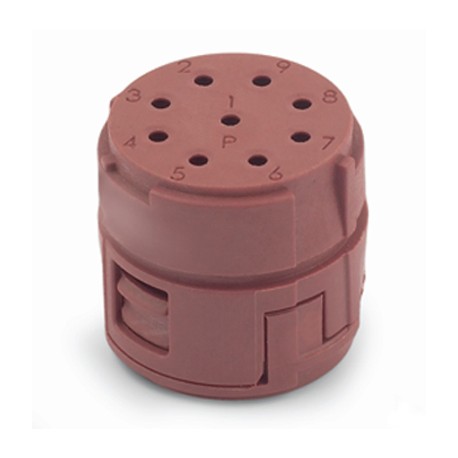

73002724 EPIC SIGNAL M23 9P LAPP EPIC SIGNAL M23 9P (5)
73002724
73002724
EPIC SIGNAL M23 9P
LAPP
5 Pcs.
Connectors > Contact insert for rectangular connectors
EPIC Round
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Providing a reliable interface for multi-conductor feedback lines, this Lapp 73002724 EPIC SIGNAL M23 9P contact insert for industrial connectors supports precision data transmission in automated machinery. Industrial control panels and servo motor linkages frequently employ these specialized inserts to ensure uninterrupted operational performance under demanding mechanical stress.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- according to IEC 61984: 150 V
- Crimp/Solder compatibility: Crimp termination: 0.14 - 1.0 mm²; Solder termination: up to 1.0 mm²
- UL File Number: E249137
- ETIM 5.0 Class-ID: EC000438
- ETIM 5.0 Class-Description: Contact insert for industrial connectors
- ETIM 6.0 Class-ID: EC000438
- ETIM 6.0 Class-Description: Contact insert for industrial connectors
More info
▲Benefits
- Universal further processing of the M23 inserts through different packaging units. Fully assembled with suitable solder contacts or unpopulated for individual assembly with crimp or solder contacts
Application range
- Plant engineering
- Measurement and control technology
- Apparatus construction
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000438
- ETIM 5.0 Class-Description: Contact insert for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000438
- ETIM 6.0 Class-Description: Contact insert for industrial connectors
Rated voltage (V)
- according to IEC 61984: 150 V
Rated impulse voltage
- 1.5 kV
Rated current (A)
- 7 A
Pollution degree
- 3
Contact resistance
- < 4 mOhm
Contacts
- Gold-plated brass
Number of contacts
- 9
- 9*1mm contacts
Termination methods
- Crimp termination: 0.14 - 1.0 mm²
- Solder termination: up to 1.0 mm²
Cycle of mechanical operation
- 100
VDE-tested
- Certified production control: VDE-REG. no. C24 (according to EN 61984, SELV according to DIN VDE 0100-410 has to be guaranteed)
- UL File Number: E249137
Temperature range
- -25°C up to +125°C
