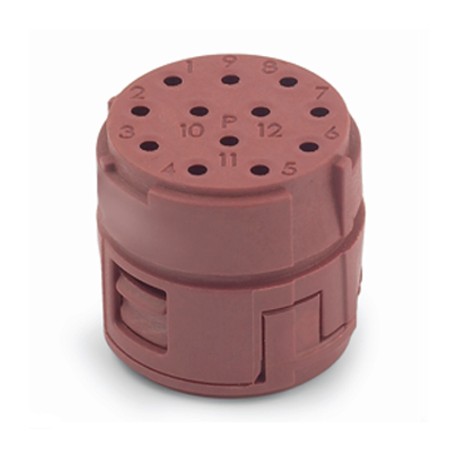

73002713 EPIC SIGNAL M23 12P LAPP EPIC SIGNAL M23 12P (20)
73002713
73002713
EPIC SIGNAL M23 12P
LAPP
20 Pcs.
Connectors > Contact insert for rectangular connectors
EPIC Round
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A contact insert for industrial connectors, specifically the Lapp 73002713 EPIC SIGNAL M23 12P LAPP EPIC SIGNAL M23 12P (20), provides secure signal transmission pathways inside heavy-duty modular connector housings used across factory machinery and automation systems. These modular inserts secure multiple conductive pins inside protective shells to simplify complex wiring layouts, streamline equipment maintenance, and isolate control signals from power interference.
Final pricing, availability and lead time are confirmed per enquiry through an RFQ.
- according to IEC 61984: 100 V
- Crimp termination: 0.14 - 1.0 mm²
- Solder termination: up to 1.0 mm²
- UL File Number: E249137
- ETIM 5.0 Class-ID: EC000438
- ETIM 5.0 Class-Description: Contact insert for industrial connectors
- ETIM 6.0 Class-ID: EC000438
- ETIM 6.0 Class-Description: Contact insert for industrial connectors
More info
▲EPIC® SIGNAL M23 Inserts 12 pole for M23 circular connector series
Made in Germany
Benefits
- Universal further processing of the M23 inserts through different packaging units. Fully assembled with suitable solder contacts or unpopulated for individual assembly with crimp or solder contacts
Application range
- Plant engineering
- Measurement and control technology
- Apparatus construction
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000438
- ETIM 5.0 Class-Description: Contact insert for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000438
- ETIM 6.0 Class-Description: Contact insert for industrial connectors
Rated voltage (V)
- according to IEC 61984: 100 V
Rated impulse voltage
- 1.5 kV
Rated current (A)
- 7 A
Pollution degree
- 3
Contact resistance
- < 4 mOhm
Contacts
- Gold-plated brass
Number of contacts
- 12
- 12*1mm contacts
Termination methods
- Crimp termination: 0.14 - 1.0 mm²
- Solder termination: up to 1.0 mm²
Cycle of mechanical operation
- 100
VDE-tested
- Certified production control: VDE-REG. no. C24 (according to EN 61984, SELV according to DIN VDE 0100-410 has to be guaranteed)
- UL File Number: E249137
Temperature range
- -25°C up to +125°C
