View larger
Images are for illustrative purposes only. Please refer to data sheet for details

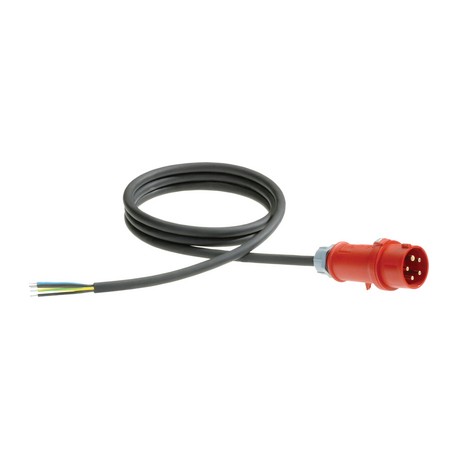

71222296 LAPP ÖLFLEX PLUG CEE 5G2,5 16A 25m
71222296
71222296
LAPP
1 unit
Automation > Multicore Harnessing
Multicore Harnessing
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Application range
- For connections to any three-phase A.C. consumers
- Machines and systems on building sites
- According to EN 50565-2: Dry or damp rooms as well as outdoors
Product features
- Also available with phase shifter (engine direction can be changed)
- Other dimensions, lengths, connectors, designs and customised versions are available upon request
Norm references / Approvals
- <HAR> H07RN-F cable type approval according to EN 50525-2-21
Product Make-up
- Mounted 5-pin CEE plug, 400 V, red, 6 o'clock in accordance with VDE 0623/EN 60309-2, splash-proof IP 44
- 80 mm stripped, with conductor end sleeves
- from 10 mm²: 100 mm stripped, with conductor end sleeves
- Mounted 5-pin CEE coupling, 400 V, red, 6 o'clock in accordance with VDE 0623/EN 60309-2, splash-proof IP 44
Classification ETIM 5
- ETIM 5.0 Class-ID: EC001576
- ETIM 5.0 Class-Description: Power cord
Classification ETIM 6
- ETIM 6.0 Class-ID: EC001576
- ETIM 6.0 Class-Description: Power cord
Core identification code
- According to VDE 0293-308 (table T9)
Conductor stranding
- Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5
Nominal voltage
- U0/U = 200/346 to 240/415
Test voltage
- 2500 V
Temperature range
- Flexible use: -25°C to +60°C
