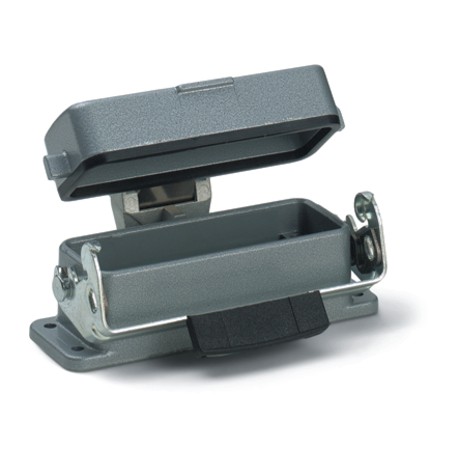

LAPP 70474000 70474000 H-A 16 AD PANEL MOUNT BASE LAPP H-A 16 AD PANEL MOUNT BASE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

70474000 H-A 16 AD PANEL MOUNT BASE LAPP H-A 16 AD PANEL MOUNT BASE

70474000

70474000

H-A 16 AD PANEL MOUNT BASE

LAPP

5 Pcs.

H-A 16 AD PANEL MOUNT BASE EPIC® H-A 16 AD-LB

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Lapp 70474000 H-A 16 AD PANEL MOUNT BASE is a panel mount base housing for industrial connectors, engineered to facilitate clean bulkhead cable entry on control panels and machine enclosures. Panel bases provide a stable platform for connector inserts, keeping internal wiring securely anchored and protected against environmental hazards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • H-A case: Wall base
  • Included: flat gasket
  • Housing: aluminium alloy, grey
  • Lever: zinc-plated steel
  • Sealing: NBR
  • NEMA 250, UL50E: 12, 4 (latched)
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The compact housing for rectangular connectors is ideal for use in machine and device manufacturing and is supplied with a seal.

  • Metal lid with sturdy hinge
  • Protection rating UL50E tested

Benefits

  • Small and compact, for applications with high number of contacts

Application range

  • Machine and equipment manufacturing
  • Control engineering
  • Electronic laboratory

Product features

  • H-A case: Wall base
  • Single lever
  • Metal cover
  • Included: flat gasket

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: aluminium alloy, grey
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12, 4 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
