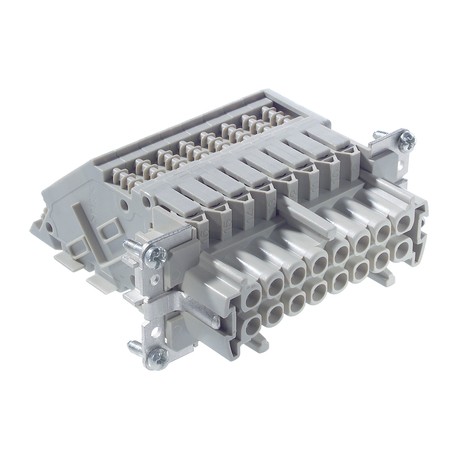

70315100 TB-H-BE 16 BRE LAPP TB-H-BE 16 BRE TERMINAL BLOCK ADAPTER
70315100
70315100
TB-H-BE 16 BRE
LAPP
10 Pcs.
Connectors > Contact insert for rectangular connectors
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Serving as an interface adapter within industrial enclosures, the Lapp 70315100 TB-H-BE 16 BRE TERMINAL BLOCK ADAPTER bridges standard modular terminal wiring with heavy-duty connector interfaces. These adapters streamline control panel layouts by organizing multiple field conductors cleanly. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- IEC: 500 VUL: 600 VCSA: 600 V
- IEC: 16 A UL: 16 A CSA: 16 A
- Screw termination: 0.5 - 4.0 mm²
- UL-tested: UL File Number: E75770
- ETIM 5.0 Class-ID: EC000438
- ETIM 5.0 Class-Description: Contact insert for industrial connectors
- ETIM 6.0 Class-ID: EC000438
- ETIM 6.0 Class-Description: Contact insert for industrial connectors
More info
▲The standard insert is ideal for use in control cabinets, has 16 contacts and can be used, for example, in investment construction.
Plug connection for control cabinets
Benefits
- Standard H-BE inserts for use with switch cabinets
- Pluggable with H-BE male inserts in hoods
- Fastening on side = "left" means that when mounting the terminal adapter on the left wall of a control cabinet, the PE connection and pin "1" are on the "top" side
Application range
- Control cabinet manufacturing
- Plant engineering
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000438
- ETIM 5.0 Class-Description: Contact insert for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000438
- ETIM 6.0 Class-Description: Contact insert for industrial connectors
Rated voltage (V)
- IEC: 500 VUL: 600 VCSA: 600 V
Rated impulse voltage
- 6 kV
Rated current (A)
- IEC: 16 A
UL: 16 A
CSA: 16 A
Pollution degree
- 3
Contacts
- Copper alloy, hard silver-plated
Number of contacts
- 16 + PE
Termination methods
- Screw termination: 0.5 - 4.0 mm²
Stripping length (mm)
- 13
Cycle of mechanical operation
- 200
VDE-tested
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +100°C, short-term up to +125°C
