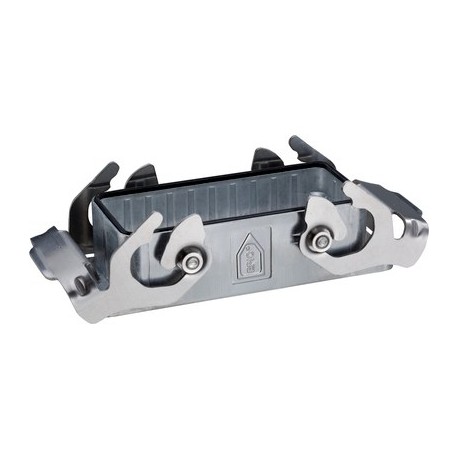

LAPP 70250217 70250217 EPIC ULTRA H-B 16 AG QB LAPP EPIC ULTRA H-B 16 AG QB (1) View larger
Images are for illustrative purposes only. Please refer to data sheet for details

70250217 EPIC ULTRA H-B 16 AG QB LAPP EPIC ULTRA H-B 16 AG QB (1)

70250217

70250217

EPIC ULTRA H-B 16 AG QB

LAPP

1 Pcs.

EPIC ULTRA H-B 16 AG QB (1) EPIC® ULTRA H-B 16 AG QB

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A heavy-duty industrial connector housing shields critical power and signal interfaces against moisture, dust, and mechanical impacts in harsh factory environments. These housings secure mating plug inserts and maintain reliable electrical continuity throughout complex automation networks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Housing: nickel-plated zinc die-casting Lever and bolts: stainless steel Sealing: NBR
  • Cable gland Body: nickel-plated brass Insert: PA Seal: special elastomer
  • NEMA 250, UL50E: 12, 4, 4X (latched)
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

EPIC® Rectangular connector housing EMC protection, corrosion resistant, UL50E, Nema250

  • EMC protection
  • Corrosion-resistant
  • Made in Germany

Benefits

  • Optimum, low-resistance 360° screening
  • All-purpose due to high corrosion resistance and high environmental protection.
  • Space-saving due to compact dimensions
  • Faster than any other comparable system
  • High mechanical resistance

Application range

  • In EMC-sensitive environments
  • For fixed and flexible applications (e.g. machinery building, wind turbines)
  • Construction machinery
  • Electric motor manufacturing

Product features

  • Housings with the BRUSH addition come with BRUSH cable screen contacting
  • Pluggable with standard housings
  • Corrosion-resistant according to DIN EN 6988
  • Resistance to cyclic salt spray is tested according to IEC 68-2-52, severity level 2
  • Salt spray testing according to DIN EN ISO 9227, method NSS, period of test 480 hours

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: nickel-plated zinc die-casting
    Lever and bolts: stainless steel
    Sealing: NBR
  • Cable gland
    Body: nickel-plated brass
    Insert: PA
    Seal: special elastomer

Protection rating

  • IP 68
  • NEMA 250, UL50E: 12, 4, 4X (latched)

Temperature range

  • -40°C to +100°C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
