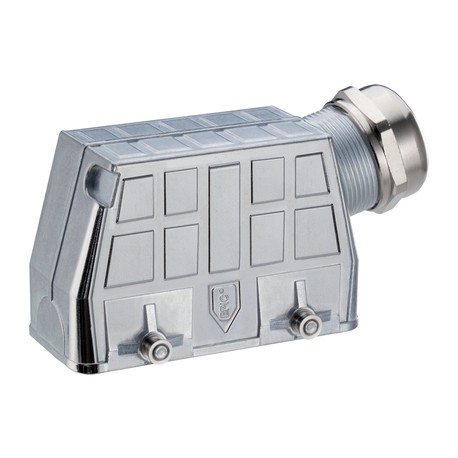

EPIC ULTRA H-B 16 TS QB 7-15 (1) EPIC® ULTRA H-B 16 TS QB

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A robust housing for industrial connectors, the Lapp 70250214 EPIC ULTRA H-B 16 TS QB 7-15 LAPP EPIC ULTRA H-B 16 TS QB 7-15 (1) encloses high-density cabling interfaces on demanding industrial automation equipment. Such hoods protect critical electrical terminations against moisture, debris, and mechanical stress, maintaining continuous circuit integrity in harsh factory floors and mobile machinery.

Final pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Housing: nickel-plated zinc die-casting Lever and bolts: stainless steel Sealing: NBR
  • Cable gland Body: nickel-plated brass Insert: PA Seal: special elastomer
  • NEMA 250, UL50E: 12, 4, 4X (latched)
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

EPIC® Rectangular connector housing EMC protection, corrosion resistant, UL50E, Nema250

  • EMC protection
  • Corrosion-resistant
  • Made in Germany

Benefits

  • Optimum, low-resistance 360° screening
  • All-purpose due to high corrosion resistance and high environmental protection.
  • Space-saving due to compact dimensions
  • Faster than any other comparable system
  • High mechanical resistance

Application range

  • Construction machinery
  • In EMC-sensitive environments
  • For fixed and flexible applications (e.g. machinery building, wind turbines)
  • Electric motor manufacturing

Product features

  • Housings with the BRUSH addition come with BRUSH cable screen contacting
  • Pluggable with standard housings
  • Corrosion-resistant according to DIN EN 6988
  • Resistance to cyclic salt spray is tested according to IEC 68-2-52, severity level 2
  • Salt spray testing according to DIN EN ISO 9227, method NSS, period of test 480 hours

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: nickel-plated zinc die-casting
    Lever and bolts: stainless steel
    Sealing: NBR
  • Cable gland
    Body: nickel-plated brass
    Insert: PA
    Seal: special elastomer

Protection rating

  • IP 68
  • NEMA 250, UL50E: 12, 4, 4X (latched)

Temperature range

  • -40°C to +100°C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
