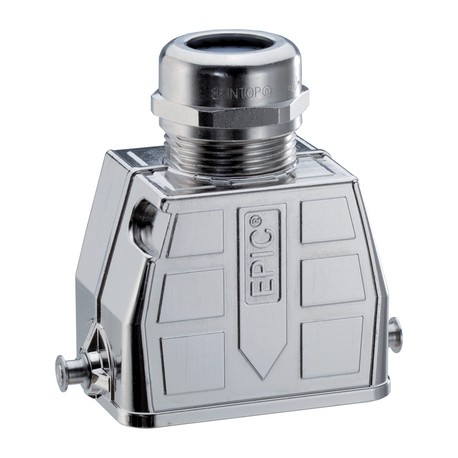

70250202 EPIC ULTRA H-B 6 TG LB 9-17 BRUSH LAPP EPIC ULTRA H-B 6 TG LB 9-17 BRUSH (1)
70250202
70250202
EPIC ULTRA H-B 6 TG LB 9-17 BRUSH
LAPP
1 Pcs.
Connectors > Housing for rectangular connectors
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Shielding sensitive plug connections in harsh factory conditions, the Lapp 70250202 EPIC ULTRA H-B 6 TG LB 9-17 BRUSH housing for industrial connectors provides robust metallic protection and integrated cable entry. Such housings are widely used in industrial automation to prevent moisture, dust, and electromagnetic interference from disrupting signal and power links. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Housing: nickel-plated zinc die-casting Lever and bolts: stainless steel Sealing: NBR
- Cable gland Body: nickel-plated brass Insert: PA Seal: special elastomer
- NEMA 250, UL50E: 12, 4, 4X (latched)
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
More info
▲EPIC® Rectangular connector housing EMC protection, corrosion resistant, UL50E, Nema250
- EMC protection
- Corrosion-resistant
- Made in Germany
Benefits
- Optimum, low-resistance 360° screening
- All-purpose due to high corrosion resistance and high environmental protection.
- Space-saving due to compact dimensions
- Faster than any other comparable system
- High mechanical resistance
Application range
- In EMC-sensitive environments
- For fixed and flexible applications (e.g. machinery building, wind turbines)
- Construction machinery
- Electric motor manufacturing
Product features
- Housings with the BRUSH addition come with BRUSH cable screen contacting
- Pluggable with standard housings
- Corrosion-resistant according to DIN EN 6988
- Resistance to cyclic salt spray is tested according to IEC 68-2-52, severity level 2
- Salt spray testing according to DIN EN ISO 9227, method NSS, period of test 480 hours
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
Material
- Housing: nickel-plated zinc die-casting
Lever and bolts: stainless steel
Sealing: NBR - Cable gland
Body: nickel-plated brass
Insert: PA
Seal: special elastomer
Protection rating
- IP 65
- NEMA 250, UL50E: 12, 4, 4X (latched)
Temperature range
- -40°C to +100°C
