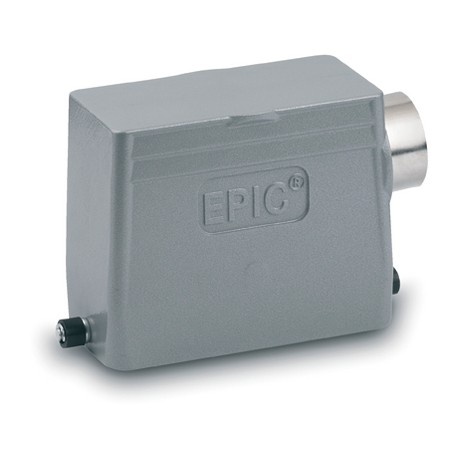

LAPP 70154600 70154600 H-B 24 TSH-RO 29 ZW. HOOD LAPP H-B 24 TSH-RO 29 ZW. HOOD View larger
Images are for illustrative purposes only. Please refer to data sheet for details

70154600 H-B 24 TSH-RO 29 ZW. HOOD LAPP H-B 24 TSH-RO 29 ZW. HOOD

70154600

70154600

H-B 24 TSH-RO 29 ZW. HOOD

LAPP

5 Pcs.

H-B 24 TSH-RO 29 ZW. HOOD EPIC® H-B 24 TSH-RO

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Lapp 70154600 H-B 24 TSH-RO 29 ZW. HOOD is an industrial connector housing designed to protect heavy-duty electrical connections from environmental hazards, mechanical impact, and moisture in harsh operating spaces. Enclosures of this type are routinely deployed in manufacturing plants, control cabinets, and machinery automation systems where secure, reliable signal and power routing is mandatory. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Housing: powder-coated aluminium alloy, grey
  • Lever: zinc-plated steel
  • Sealing: NBR; NEMA 250, UL50E: 12 (latched)
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The robust high metal housing has pivots for a single lever and a side cable entry. It can be used, for example, in the plastics industry.

  • Non-slip ridges for comfortable disconnecting
  • More interior space for wiring
  • Protection rating UL50E tested

Benefits

  • Ideal for many applications due to a wide range of housings and inserts
  • M40 housing extension on M50 with SKINTOP 53112083 possible (clamping range 27 - 35 mm)

Application range

  • Plant engineering
  • Light & sound technology
  • Plastics industry

Product features

  • Hood, high version
  • Reels for single lever
  • Side cable entry
  • Versions with / without neck

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated aluminium alloy, grey
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
