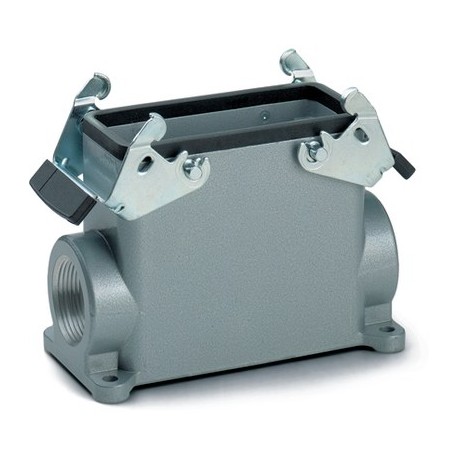

LAPP 70135400 70135400 H-B 24 SGRH 29 ZW. BOX MOUNT BASE LAPP H-B 24 SGRH 29 ZW. BOX MOUNT BASE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

70135400 H-B 24 SGRH 29 ZW. BOX MOUNT BASE LAPP H-B 24 SGRH 29 ZW. BOX MOUNT BASE

70135400

70135400

H-B 24 SGRH 29 ZW. BOX MOUNT BASE

LAPP

5 Pcs.

H-B 24 SGRH 29 ZW. BOX MOUNT BASE EPIC® H-B 24 SGRH

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Operating as a surface-mounted connection base, the Lapp 70135400 H-B 24 SGRH 29 ZW. BOX MOUNT BASE LAPP H-B 24 SGRH 29 ZW. BOX MOUNT BASE anchors multi-pin wiring harnesses to equipment chassis. Box mount bases provide dependable fixed entry points for power and control distribution networks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Housing: powder-coated aluminium alloy, grey
  • Lever: zinc-plated steel
  • Sealing: NBR
  • NEMA 250, UL50E: 12, 4 (latched)
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The robust metal housing with a cable entry and 2 double levers is suitable for use in investment construction applications.

  • Double lever version with 2 levers for increased safety
  • Protection rating UL50E tested

Benefits

  • Safe fixing with 4 screws
  • Casted neck for easy assembly of the cable gland

Application range

  • Plant engineering
  • Light & sound technology
  • Plastics industry

Product features

  • Surface-mount base, high version
  • Dual levers
  • 1 cable entry

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated aluminium alloy, grey
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12, 4 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
