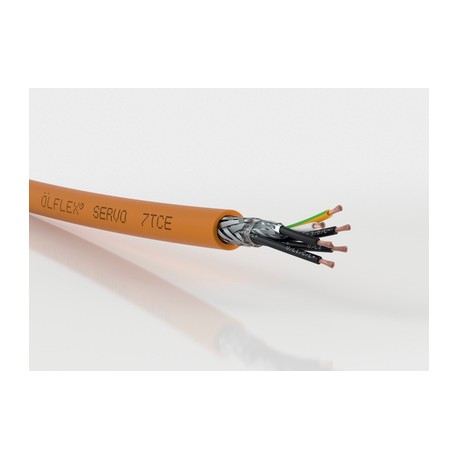

LAPP 700737 700737 LAPP ÖLFLEX SERVO 7TCE 4G10AWG+(2x16AWG) View larger
Images are for illustrative purposes only. Please refer to data sheet for details

700737 LAPP ÖLFLEX SERVO 7TCE 4G10AWG+(2x16AWG)

700737

700737

LAPP

1 m.

ÖLFLEX SERVO 7TCE 4G10AWG+(2x16AWG) ÖLFLEX® SERVO 7TCE

Cables > Power cable 1 kV, for moving application
ÖLFLEX-SERVO cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

ÖLFLEX servo cable® 7TCE: shielded servo cable for fixed installation or occasional flexible use with UL TC-ER certification.

  • Suitable for servo motors from various manufacturers
  • Wide application range (NFPA 70/NEC), in accordance with NFPA 79 industrial paramachinery
  • EMC Compliance (CEM)

proceeds

  • A single, common cable for multiple circuits.
  • Its multiple certificates allow to reduce the stocks of different products, thus reducing storage costs
  • Economical, easy to install, since it does not require closed pipes (suitable for open installations)
  • Low capacity construction allows for longer cable lengths between converter and drive
  • Ul TC-ER and c(UL) CIC/TC approval

Scope of use

  • Connection cable between the servo controller and the motor
  • For fixed installation or movement
    occasional.
  • Potentially explosive atmospheres (Class 1 Division 2) according to NEC 501
  • Plant Engineering
  • Industrial machinery and machine tools

Product features

  • Oil resistant according to UL OIL RES I & II
  • No fire spreader according to CSA FT4; UL (Vertical Test)
  • -40°C Cold Bend; -25°C Cold Impact; 90°C Wet or Dry
  • Resistant to sunlight; buried directly

Reference Standards / Approvals

  • UL TC-ER (Exposed Run) according to UL 1277
  • Class 1 Division 2 according to NEC article 336, 501
  • Flexible Motor Supply cable according to UL 2277
  • c(UL) CIC FT4 (18AWG - 14AWG);
    cRU AWM I/II A/B FT4

Product composition

  • Conductor formed by fine bare copper wires
  • Conductor insulation: XLPE
  • Individual design depending on each reference: power conductors with one or two independently shielded control pairs. Braided control and feed pairs with short pitch lengths
  • Tinned copper braid screen
  • Outer shell: Specially designed thermoplastic elastomer (TPE), orange

ETS Classification 5

  • ETIM 5.0 Class ID: EC000057
  • ETIM Class 5.0 Description: Low Voltage Power Cable

Driver Identification Code

  • Power conductors: black with U/L1/C/L+ marking; V/L2; W/L3/D /L-; GN/YE protection conductor
  • Optional designs with
    a pair of control conductors: black; white
    Two pairs of control conductors: black with white numbers: 5, 6, 7, 8

Certifications

  • USA: UL TC-ER, Flexible Motor Supply Canada: c(UL) CIC/TC FT4, cRU AWM I/II A/B FT4

Driver training

  • Fine threads

Minimum radius of curvature

  • Occasional flexible use: 15 x outside diameter
  • Fixed installation: 6 x outer diameter

Nominal voltage

  • UL TC: 600V
    UL Flexible Motor Supply: 1000V
    c(UL) CIC/TC: 600V
    cRU AWM: 1000V
  • IEC U0/U: 600/1000 V

Test voltage

  • 2000 V

Protective conductor

  • G = with AM/VE protection conductor

Temperature range

  • Occasional flexible use: -25°C to +90°C
    Fixed installation: -40°C to +90°C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
