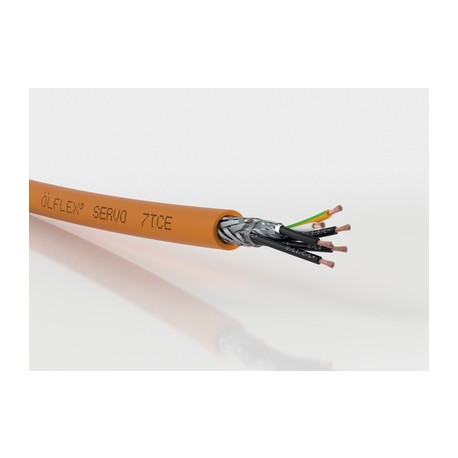

ÖLFLEX SERVO 7TCE 4G12AWG+(2x16AWG) ÖLFLEX® SERVO 7TCE

Cables > Power cable 1 kV, for moving application
ÖLFLEX-SERVO cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Lapp 700736 LAPP ÖLFLEX SERVO 7TCE 4G12AWG+(2x16AWG) operates as a low voltage power cable designed to connect variable frequency drives to industrial servo motors. Such specialized cables are widely used in factory automation to manage power delivery while minimizing signal distortion across motor lines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Conductor insulation: XLPE: Conductor insulation: XLPE
  • Outer shell: Specially designed thermoplastic elastomer (TPE), orange: Outer shell: Specially designed thermoplastic elastomer (TPE), orange
  • ETIM Class 5.0 Description: Low Voltage Power Cable: ETIM Class 5.0 Description: Low Voltage Power Cable
  • Power conductors: black with U/L1/C/L+ marking; V/L2; W/L3/D /L-; GN/YE protection conductor: Power conductors: black with U/L1/C/L+ marking; V/L2; W/L3/D /L-; GN/YE protection conductor
  • Optional designs with a pair of control conductors: black; white Two pairs of control conductors: black with white numbers: 5, 6, 7, 8: Optional designs with a pair of control conductors: black; white Two pairs of control conductors: black with white numbers: 5, 6, 7, 8
  • USA: UL TC-ER, Flexible Motor Supply Canada: c(UL) CIC/TC FT4, cRU AWM I/II A/B FT4: USA: UL TC-ER, Flexible Motor Supply Canada: c(UL) CIC/TC FT4, cRU AWM I/II A/B FT4
  • Occasional flexible use: 15 x outside diameter: Occasional flexible use: 15 x outside diameter
  • Fixed installation: 6 x outer diameter: Fixed installation: 6 x outer diameter
  • UL TC: 600V UL Flexible Motor Supply: 1000V c(UL) CIC/TC: 600V cRU AWM: 1000V: UL TC: 600V UL Flexible Motor Supply: 1000V c(UL) CIC/TC: 600V cRU AWM: 1000V
  • IEC U 0 /U: 600/1000 V: IEC U 0 /U: 600/1000 V
  • Occasional flexible use: -25°C to +90°C Fixed installation: -40°C to +90°C: Occasional flexible use: -25°C to +90°C Fixed installation: -40°C to +90°C
  • ETIM 5.0 Class ID: EC000057: ETIM 5.0 Class ID: EC000057

More info

▲

ÖLFLEX servo cable® 7TCE: shielded servo cable for fixed installation or occasional flexible use with UL TC-ER certification.

  • Suitable for servo motors from various manufacturers
  • Wide application range (NFPA 70/NEC), in accordance with NFPA 79 industrial paramachinery
  • EMC Compliance (CEM)

proceeds

  • A single, common cable for multiple circuits.
  • Its multiple certificates allow to reduce the stocks of different products, thus reducing storage costs
  • Economical, easy to install, since it does not require closed pipes (suitable for open installations)
  • Low capacity construction allows for longer cable lengths between converter and drive
  • Ul TC-ER and c(UL) CIC/TC approval

Scope of use

  • Connection cable between the servo controller and the motor
  • For fixed installation or movement
    occasional.
  • Potentially explosive atmospheres (Class 1 Division 2) according to NEC 501
  • Plant Engineering
  • Industrial machinery and machine tools

Product features

  • Oil resistant according to UL OIL RES I & II
  • No fire spreader according to CSA FT4; UL (Vertical Test)
  • -40°C Cold Bend; -25°C Cold Impact; 90°C Wet or Dry
  • Resistant to sunlight; buried directly

Reference Standards / Approvals

  • UL TC-ER (Exposed Run) according to UL 1277
  • Class 1 Division 2 according to NEC article 336, 501
  • Flexible Motor Supply cable according to UL 2277
  • c(UL) CIC FT4 (18AWG - 14AWG);
    cRU AWM I/II A/B FT4

Product composition

  • Conductor formed by fine bare copper wires
  • Conductor insulation: XLPE
  • Individual design depending on each reference: power conductors with one or two independently shielded control pairs. Braided control and feed pairs with short pitch lengths
  • Tinned copper braid screen
  • Outer shell: Specially designed thermoplastic elastomer (TPE), orange

ETS Classification 5

  • ETIM 5.0 Class ID: EC000057
  • ETIM Class 5.0 Description: Low Voltage Power Cable

Driver Identification Code

  • Power conductors: black with U/L1/C/L+ marking; V/L2; W/L3/D /L-; GN/YE protection conductor
  • Optional designs with
    a pair of control conductors: black; white
    Two pairs of control conductors: black with white numbers: 5, 6, 7, 8

Certifications

  • USA: UL TC-ER, Flexible Motor Supply Canada: c(UL) CIC/TC FT4, cRU AWM I/II A/B FT4

Driver training

  • Fine threads

Minimum radius of curvature

  • Occasional flexible use: 15 x outside diameter
  • Fixed installation: 6 x outer diameter

Nominal voltage

  • UL TC: 600V
    UL Flexible Motor Supply: 1000V
    c(UL) CIC/TC: 600V
    cRU AWM: 1000V
  • IEC U0/U: 600/1000 V

Test voltage

  • 2000 V

Protective conductor

  • G = with AM/VE protection conductor

Temperature range

  • Occasional flexible use: -25°C to +90°C
    Fixed installation: -40°C to +90°C
