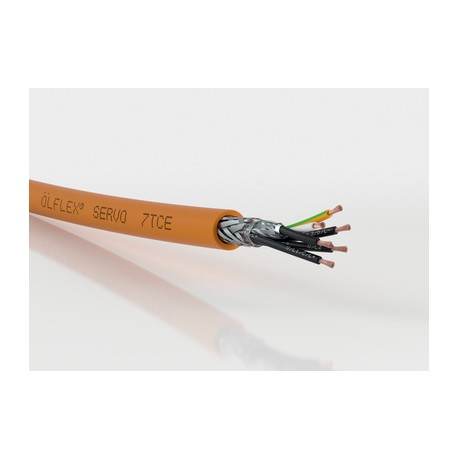

700735 LAPP ÖLFLEX SERVO 7TCE 4G14AWG+(2x16AWG)
700735
700735
LAPP
1 m.
Cables > Power cable 1 kV, for moving application
ÖLFLEX-SERVO cabling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed as a versatile low voltage power cable, this Lapp 700735 LAPP ÖLFLEX SERVO 7TCE 4G14AWG+(2x16AWG) delivers dependable service within automated industrial environments. Power cabling of this category is routinely implemented to bridge electrical power sources with industrial processing equipment.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conductor insulation: XLPE
- Outer shell: Specially designed thermoplastic elastomer (TPE), orange
- ETIM Class 5.0 Description: Low Voltage Power Cable
- Power conductors: black with U/L1/C/L+ marking
- V/L2: W/L3/D /L-
- GN/YE protection conductor: Optional designs with a pair of control conductors: black
- white Two pairs of control conductors: black with white numbers: 5, 6, 7, 8
- USA: UL TC-ER, Flexible Motor Supply Canada: c(UL) CIC/TC FT4, cRU AWM I/II A/B FT4
- Occasional flexible use: 15 x outside diameter
- Fixed installation: 6 x outer diameter
- UL TC: 600V UL Flexible Motor Supply: 1000V c(UL) CIC/TC: 600V cRU AWM: 1000V
- IEC U 0 /U: 600/1000 V
- Occasional flexible use: -25°C to +90°C Fixed installation: -40°C to +90°C
- ETIM 5.0 Class ID: EC000057
More info
▲ÖLFLEX servo cable® 7TCE: shielded servo cable for fixed installation or occasional flexible use with UL TC-ER certification.
- Suitable for servo motors from various manufacturers
- Wide application range (NFPA 70/NEC), in accordance with NFPA 79 industrial paramachinery
- EMC Compliance (CEM)
proceeds
- A single, common cable for multiple circuits.
- Its multiple certificates allow to reduce the stocks of different products, thus reducing storage costs
- Economical, easy to install, since it does not require closed pipes (suitable for open installations)
- Low capacity construction allows for longer cable lengths between converter and drive
- Ul TC-ER and c(UL) CIC/TC approval
Scope of use
- Connection cable between the servo controller and the motor
- For fixed installation or movement
occasional. - Potentially explosive atmospheres (Class 1 Division 2) according to NEC 501
- Plant Engineering
- Industrial machinery and machine tools
Product features
- Oil resistant according to UL OIL RES I & II
- No fire spreader according to CSA FT4; UL (Vertical Test)
- -40°C Cold Bend; -25°C Cold Impact; 90°C Wet or Dry
- Resistant to sunlight; buried directly
Reference Standards / Approvals
- UL TC-ER (Exposed Run) according to UL 1277
- Class 1 Division 2 according to NEC article 336, 501
- Flexible Motor Supply cable according to UL 2277
- c(UL) CIC FT4 (18AWG - 14AWG);
cRU AWM I/II A/B FT4
Product composition
- Conductor formed by fine bare copper wires
- Conductor insulation: XLPE
- Individual design depending on each reference: power conductors with one or two independently shielded control pairs. Braided control and feed pairs with short pitch lengths
- Tinned copper braid screen
- Outer shell: Specially designed thermoplastic elastomer (TPE), orange
ETS Classification 5
- ETIM 5.0 Class ID: EC000057
- ETIM Class 5.0 Description: Low Voltage Power Cable
Driver Identification Code
- Power conductors: black with U/L1/C/L+ marking; V/L2; W/L3/D /L-; GN/YE protection conductor
- Optional designs with
a pair of control conductors: black; white
Two pairs of control conductors: black with white numbers: 5, 6, 7, 8
Certifications
- USA: UL TC-ER, Flexible Motor Supply Canada: c(UL) CIC/TC FT4, cRU AWM I/II A/B FT4
Driver training
- Fine threads
Minimum radius of curvature
- Occasional flexible use: 15 x outside diameter
- Fixed installation: 6 x outer diameter
Nominal voltage
- UL TC: 600V
UL Flexible Motor Supply: 1000V
c(UL) CIC/TC: 600V
cRU AWM: 1000V - IEC U0/U: 600/1000 V
Test voltage
- 2000 V
Protective conductor
- G = with AM/VE protection conductor
Temperature range
- Occasional flexible use: -25°C to +90°C
Fixed installation: -40°C to +90°C
