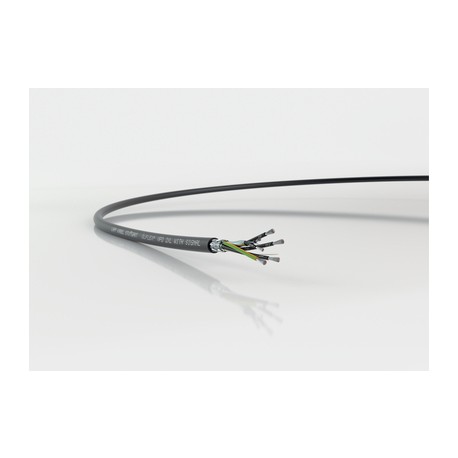

LAPP 700714 700714 LAPP ÖLFLEX VFD 2XL W/SIGNAL 8/4C+14/2C View larger
Images are for illustrative purposes only. Please refer to data sheet for details

700714 LAPP ÖLFLEX VFD 2XL W/SIGNAL 8/4C+14/2C

700714

700714

LAPP

1 m.

ÖLFLEX VFD 2XL W/SIGNAL 8/4C+14/2C ÖLFLEX® VFD 2XL with Signal

Cables > Power cable 1 kV, for moving application
ÖLFLEX-SERVO cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Providing an integrated solution for motor control, this Lapp 700714 LAPP ÖLFLEX VFD 2XL W/SIGNAL 8/4C+14/2C low voltage power cable combines main power delivery with signal transmission. Combined VFD and signal lines streamline machine builds by minimizing the total cable count running to motor assemblies. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Core insulation: XLPE
  • Outer sheath: Specially formulated thermoplastic elastomer (TPE), black
  • USA: UL TC-ER, WTTC, Flexible Motor Supply Canada: c(UL) CIC/TC FT4, cRU AWM I/II A/B FT4
  • Occasional flexing: 15 x outer diameter
  • Fixed installation: 7.5 x outer diameter
  • UL TC: 600V/2000V UL Flexible Motor Supply: 1000V c(UL) CIC/TC: 600V cRU AWM: 1000V
  • IEC U0/U: 600/1000 V
  • Occasional flexing: -25°C to +90°C Fixed installation: -40°C to +90°C
  • ETIM 5.0 Class-ID: EC000057
  • ETIM 5.0 Class-Description: Low voltage power cable
  • ETIM 6.0 Class-ID: EC000057
  • ETIM 6.0 Class-Description: Low voltage power cable

More info

▲

Benefits

  • One common cable for multiple circuits
  • Multi-standard certification reduces part varieties and saves costs
  • Cost-saving, easy installation due to omission of closed raceways (suitable for open wiring)
  • Low capacitance design enables longer cable connection between frequency converter and motor
  • UL TC-ER and c(UL) CIC/TC approved

Application range

  • Connecting cable between Frequency converter and motor
  • For fixed installation or applications with occasional movements
  • Class 1 Division 2 per NEC Articles 336, 501
  • Plant engineering
  • Industrial machinery and machine tools

Product features

  • Oil-resistant according to UL OIL RES I & II
  • Flame-retardant according to CSA FT4
    UL Vertical-Tray Flame Test
  • 90°C Wet or Dry; -40°C Cold Bend;-25°C Cold Impact
  • Sunlight Resistant; Direct Burial

Norm references / Approvals

  • UL TC-ER (exposed run) per UL 1277
  • Class 1 Division 2 per NEC Articles 336, 501
  • Flexible Motor Supply Cable per UL 2277
  • c(UL) CIC/TC FT4; cRU AWM I/II A/B FT4
  • CE (50V - 1kV)

Product Make-up

  • Fine-wire, tinned-copper conductor
  • Core insulation: XLPE
  • Control pair with laminated aluminium film and tin-plated drain wire
  • Barrier tape
  • Aluminum-coated foil
  • Tinned-copper braiding with drain wire
  • Outer sheath: Specially formulated thermoplastic elastomer (TPE), black

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000057
  • ETIM 5.0 Class-Description: Low voltage power cable

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000057
  • ETIM 6.0 Class-Description: Low voltage power cable

Core identification code

  • Black with white numbers

Certifications

  • USA: UL TC-ER, WTTC, Flexible Motor Supply
    Canada: c(UL) CIC/TC FT4, cRU AWM I/II A/B FT4

Conductor stranding

  • Fine wire

Minimum bending radius

  • Occasional flexing: 15 x outer diameter
  • Fixed installation: 7.5 x outer diameter

Nominal voltage

  • UL TC: 600V/2000V
    UL Flexible Motor Supply: 1000V
    c(UL) CIC/TC: 600V
    cRU AWM: 1000V
  • IEC U0/U: 600/1000 V

Test voltage

  • 6000 V

Protective conductor

  • G = with GN-YE protective conductor

Temperature range

  • Occasional flexing: -25°C to +90°C
    Fixed installation: -40°C to +90°C
