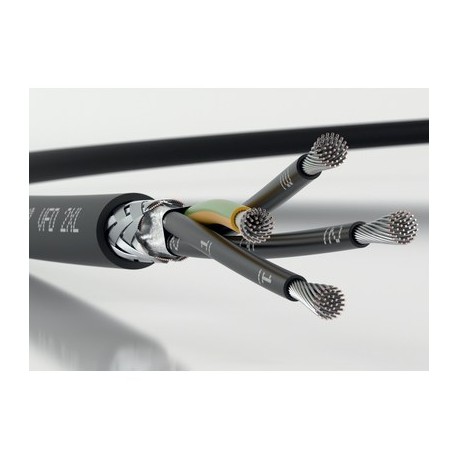

LAPP 700707 700707 LAPP ÖLFLEX VFD 2XL 2/4C View larger
Images are for illustrative purposes only. Please refer to data sheet for details

700707 LAPP ÖLFLEX VFD 2XL 2/4C

700707

700707

LAPP

1 m.

ÖLFLEX VFD 2XL 2/4C ÖLFLEX® VFD 2XL

Cables > Power cable 1 kV, for moving application
ÖLFLEX-SERVO cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Functioning as a low voltage power cable, the 700707 LAPP ÖLFLEX VFD 2XL 2/4C delivers robust power transmission between variable frequency drives and industrial motors. These specialized cables are constructed to manage high voltage spikes and reduce electrical noise in motor applications. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Core insulation: XLPE
  • Screening: wrapped with braided tinned-copper wires
  • Outer sheath: Specially formulated thermoplastic elastomer (TPE), black
  • USA: UL TC-ER, WTTC, Flexible Motor Supply Canada: c(UL) CIC/TC FT4, cRU AWM I/II A/B FT4
  • Occasional flexing: 15 x outer diameter
  • Fixed installation: 7.5 x outer diameter
  • UL TC: 600V/2000V UL Flexible Motor Supply: 1000V c(UL) CIC/TC: 600V cRU AWM: 1000V
  • IEC U0/U: 600/1000 V
  • Occasional flexing: -25°C to +90°C Fixed installation: -40°C to +90°C
  • ETIM 5.0 Class-ID: EC000057
  • ETIM 5.0 Class-Description: Low voltage power cable
  • ETIM 6.0 Class-ID: EC000057
  • ETIM 6.0 Class-Description: Low voltage power cable

More info

▲

Benefits

  • Reduced insulation wall thickness, thus space-saving installation
  • Multi-standard certification reduces part varieties and saves costs
  • Cost-saving, easy installation due to omission of closed raceways (suitable for open wiring)
  • Low capacitance design enables longer cable connection between frequency converter and motor
  • UL TC-ER and c(UL) CIC/TC approved

Application range

  • Connecting cable between Frequency converter and motor
  • For fixed installation or applications with occasional movements
  • Class 1 Division 2 per NEC Articles 336, 501
  • Plant engineering
  • Industrial machinery and machine tools

Product features

  • Oil-resistant according to UL OIL RES I & II
  • Flame-retardant according to CSA FT4
    UL Vertical-Tray Flame Test
  • 90°C Wet or Dry; -40°C Cold Bend;-25°C Cold Impact
  • Sunlight Resistant; Direct Burial

Norm references / Approvals

  • UL TC-ER (exposed run) per UL 1277
  • Class 1 Division 2 per NEC Articles 336, 501
  • Flexible Motor Supply Cable per UL 2277
  • c(UL) CIC/TC FT4; cRU AWM I/II A/B FT4
  • CE (50V - 1kV)

Product Make-up

  • Fine-wire, tinned-copper conductor
  • Core insulation: XLPE
  • Aluminum-coated foil
  • Screening: wrapped with braided tinned-copper wires
  • Outer sheath: Specially formulated thermoplastic elastomer (TPE), black

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000057
  • ETIM 5.0 Class-Description: Low voltage power cable

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000057
  • ETIM 6.0 Class-Description: Low voltage power cable

Core identification code

  • Black with white numbers

Certifications

  • USA: UL TC-ER, WTTC, Flexible Motor Supply
    Canada: c(UL) CIC/TC FT4, cRU AWM I/II A/B FT4

Conductor stranding

  • Fine wire

Minimum bending radius

  • Occasional flexing: 15 x outer diameter
  • Fixed installation: 7.5 x outer diameter

Nominal voltage

  • UL TC: 600V/2000V
    UL Flexible Motor Supply: 1000V
    c(UL) CIC/TC: 600V
    cRU AWM: 1000V
  • IEC U0/U: 600/1000 V

Test voltage

  • 6000 V

Protective conductor

  • G = with GN-YE protective conductor

Temperature range

  • Occasional flexing: -25°C to +90°C
    Fixed installation: -40°C to +90°C
