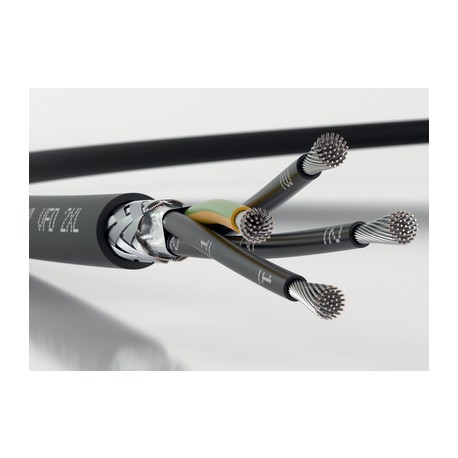

LAPP 700701 700701 ÖLFLEX VFD 2XL 4G2,5 LAPP ÖLFLEX VFD 2XL 4G2,5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

700701 ÖLFLEX VFD 2XL 4G2,5 LAPP ÖLFLEX VFD 2XL 4G2,5

700701

700701

ÖLFLEX VFD 2XL 4G2,5

LAPP

1 m.

ÖLFLEX VFD 2XL 4G2,5 ÖLFLEX® VFD 2XL

Cables > Power cable 1 kV, for moving application
ÖLFLEX-SERVO cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

ÖLFLEX® VFD 2XL - screened VFD cable for fixed installation or occasional flexing with UL TC-ER.

  • VFD drive and motor connections
  • Wide application range (NFPA 70/NEC)/ compliance with NFPA 79 for industrial machinery
  • EMC-compliant

Benefits

  • Reduced insulation wall thickness, thus space-saving installation
  • Multi-standard certification reduces part varieties and saves costs
  • Cost-saving, easy installation due to omission of closed raceways (suitable for open wiring)
  • Low capacitance design enables longer cable connection between frequency converter and motor
  • UL TC-ER and c(UL) CIC/TC approved

Application range

  • Connecting cable between Frequency converter and motor
  • For fixed installation or applications with occasional movements
  • Class 1 Division 2 per NEC Articles 336, 501
  • Plant engineering
  • Industrial machinery and machine tools

Product features

  • Oil-resistant according to UL OIL RES I & II
  • Flame-retardant according to CSA FT4
    UL Vertical-Tray Flame Test
  • 90°C Wet or Dry; -40°C Cold Bend;-25°C Cold Impact
  • Sunlight Resistant; Direct Burial

Norm references / Approvals

  • UL TC-ER (exposed run) per UL 1277
  • Class 1 Division 2 per NEC Articles 336, 501
  • Flexible Motor Supply Cable per UL 2277
  • c(UL) CIC/TC FT4; cRU AWM I/II A/B FT4
  • CE (50V - 1kV)

Product Make-up

  • Fine-wire, tinned-copper conductor
  • Core insulation: XLPE
  • Aluminum-coated foil
  • Screening: wrapped with braided tinned-copper wires
  • Outer sheath: Specially formulated thermoplastic elastomer (TPE), black

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000057
  • ETIM 5.0 Class-Description: Low voltage power cable

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000057
  • ETIM 6.0 Class-Description: Low voltage power cable

Core identification code

  • Black with white numbers

Certifications

  • USA: UL TC-ER, WTTC, Flexible Motor Supply
    Canada: c(UL) CIC/TC FT4, cRU AWM I/II A/B FT4

Conductor stranding

  • Fine wire

Minimum bending radius

  • Occasional flexing: 15 x outer diameter
  • Fixed installation: 7.5 x outer diameter

Nominal voltage

  • UL TC: 600V/2000V
    UL Flexible Motor Supply: 1000V
    c(UL) CIC/TC: 600V
    cRU AWM: 1000V
  • IEC U0/U: 600/1000 V

Test voltage

  • 6000 V

Protective conductor

  • G = with GN-YE protective conductor

Temperature range

  • Occasional flexing: -25°C to +90°C
    Fixed installation: -40°C to +90°C
