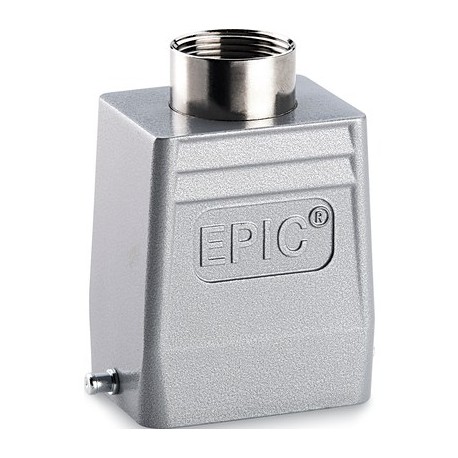

70020200 H-B 6 TGH 21 ZW. HOOD LAPP H-B 6 TGH 21 ZW. HOOD
70020200
70020200
H-B 6 TGH 21 ZW. HOOD
LAPP
10 Pcs.
Connectors > Housing for rectangular connectors
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Built to accommodate multi-pin connector inserts, the Lapp 70020200 H-B 6 TGH 21 ZW. HOOD is a heavy-duty industrial connector enclosure designed for cable-to-panel or inline wiring configurations. These protective hoods safeguard sensitive electrical terminations from physical damage, dust, and fluid ingress in manufacturing plants. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Housing: powder-coated aluminium alloy, grey
- Bolts: steel, coated
- NEMA 250, UL50E: 12, 4 (latched)
- Certified production control: VDE-REG. no.: B437
- UL-tested: UL File Number: E75770
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
More info
▲The robust metal housing is ideal for use in investment construction and the plastics industry and has a direct cable entry.
- Non-slip ridges for comfortable disconnecting
- More interior space for wiring
- Protection rating UL50E tested
Benefits
- The smallest housing out of the H-B series. For inserts with high electrical properties
Application range
- Plant engineering
- Control engineering
- Plastics industry
Product features
- Hood, high version
- Bolts for single lever
- Straight cable entry
- Versions with / without neck
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
Material
- Housing: powder-coated aluminium alloy, grey
Bolts: steel, coated
Protection rating
- IP 65 (latched)
- NEMA 250, UL50E: 12, 4 (latched)
VDE-tested
- Certified production control: VDE-REG. no.: B437
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +100°C, short-term up to +125°C
