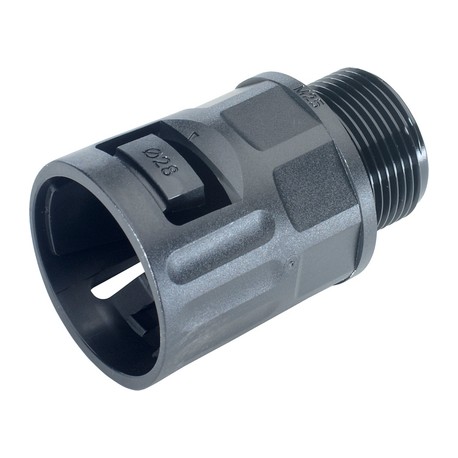

LAPP 68100095 68100095 SILVYN FLEXILOK PG 21 /28 BK LAPP SILVYN FLEXILOK PG 21 /28 BK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

68100095 SILVYN FLEXILOK PG 21 /28 BK LAPP SILVYN FLEXILOK PG 21 /28 BK

68100095

68100095

SILVYN FLEXILOK PG 21 /28 BK

LAPP

10 Pcs.

SILVYN FLEXILOK PG 21 /28 BK SILVYN® FLEXILOK PG

Automation > Screw connection for corrugated plastic hose
SILVYN cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Lapp screw connection for corrugated plastic hose (68100095) links flexible conduit runs directly to machine interfaces, ensuring protected cable pathways through demanding industrial environments. Proper installation reduces the risk of mechanical damage to electrical lines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • ETIM 5.0 Class-ID: EC001176
  • ETIM 5.0 Class-Description: Screw connection for corrugated plastic hose
  • ETIM 6.0 Class-ID: EC001176
  • ETIM 6.0 Class-Description: Screw connection for corrugated plastic hose

More info

▲

SILVYN® FLEXILOK PG - PG threaded conduit fitting

  • extremely economical
  • Small purchasing unit

Benefits

  • Fast assembly
  • Easy to assemble
  • Cost-effective conduit gland
  • No loose parts
  • New space-saving design

Application range

  • Mechanical engineering
  • Control cabinet manufacturing
  • Moving applications
  • Applications with limited space
  • Building Installation

Product features

  • In black colour UV-resistant and weather-proofed
  • One-piece slim design
  • Halogen and cadmium-free

Norm references / Approvals

  • UL FILENUMBER E308201

Product Make-up

  • PG connection thread
  • One-piece body
  • Special clamping system

Note

  • Removeable with a screwdriver

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001176
  • ETIM 5.0 Class-Description: Screw connection for corrugated plastic hose

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001176
  • ETIM 6.0 Class-Description: Screw connection for corrugated plastic hose

Norm references / Approvals

  • IEC EN 61386-23

On request

  • PG 7 for FPAS 10
    PG 36 for FPAS 42
    PG 48 for FPAS 54

Colour delivered

  • Grey (RAL 7031)
    Black (RAL 9005), UV-resistant

Material

  • PA66
    Halogen-free

Protection rating

  • IP 66

Temperature range

  • -40°C to +120°C
