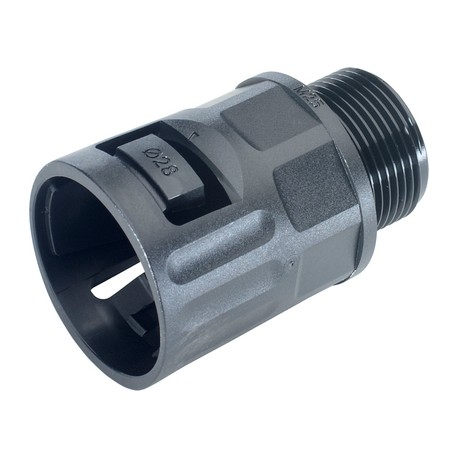

LAPP 65500455 65500455 SILVYN FLEXILOK M 25x1,5 /28 BK LAPP SILVYN FLEXILOK M 25x1,5 /28 BK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

65500455 SILVYN FLEXILOK M 25x1,5 /28 BK LAPP SILVYN FLEXILOK M 25x1,5 /28 BK

65500455

65500455

SILVYN FLEXILOK M 25x1,5 /28 BK

LAPP

10 Pcs.

SILVYN FLEXILOK M 25x1,5 /28 BK SILVYN® FLEXILOK M

Automation > Screw connection for corrugated plastic hose
SILVYN cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Lapp 65500455 screw connection offers dependable mechanical retention and ingress protection for corrugated plastic conduits utilized across diverse manufacturing floors. Cable protection accessories of this type protect vulnerable wires from mechanical abrasion and fluid exposure. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • ETIM 5.0 Class-Description: Screw connection for corrugated plastic hose
  • ETIM 6.0 Class-Description: Screw connection for corrugated plastic hose

More info

▲

Benefits

  • Fast assembly
  • Easy to assemble
  • Cost-effective conduit gland
  • No loose parts
  • New space-saving design

Application range

  • Mechanical engineering
  • Control cabinet manufacturing
  • Moving applications
  • Applications with limited space
  • Building Installation

Product features

  • In black colour UV-resistant and weather-proofed
  • One-piece slim design
  • Halogen and cadmium-free

Norm references / Approvals

  • UL FILENUMBER E308201

Product Make-up

  • Metric connection thread
  • One-piece body
  • Special clamping system

Note

  • Removeable with a screwdriver
  • PG threaded versions are to be found in the online catalogue

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001176
  • ETIM 5.0 Class-Description: Screw connection for corrugated plastic hose

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001176
  • ETIM 6.0 Class-Description: Screw connection for corrugated plastic hose

Norm references / Approvals

Colour delivered

  • Grey (RAL 7031)
    Black (RAL 9005), UV-resistant

Material

  • PA66
    Halogen-free

Protection rating

  • IP 66

Temperature range

  • -40°C to +120°C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
