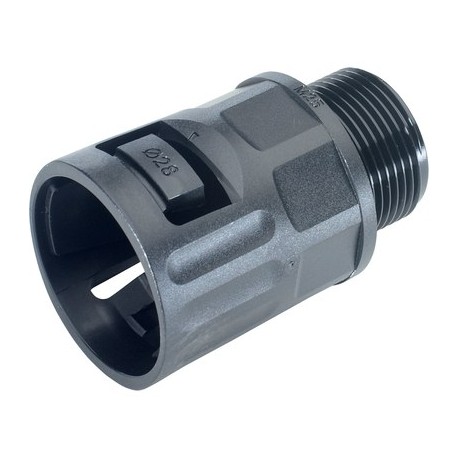

LAPP 65500436 65500436 SILVYN FLEXILOK M 20x1,5 /20 BK LAPP SILVYN FLEXILOK M 20x1,5 /20 BK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

65500436 SILVYN FLEXILOK M 20x1,5 /20 BK LAPP SILVYN FLEXILOK M 20x1,5 /20 BK

65500436

65500436

SILVYN FLEXILOK M 20x1,5 /20 BK

LAPP

10 Pcs.

SILVYN FLEXILOK M 20x1,5 /20 BK SILVYN® FLEXILOK M

Automation > Screw connection for corrugated plastic hose
SILVYN cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Threaded connection for flexible corrugated plastic tube Lapp part number 65500436 allows secure attachment of protective conduits to machinery housings. These connectors maintain dependable mechanical retention across automated production lines.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Description of class ETIM 5.0: threaded connection for corrugated polyamide tube
  • ETIM 5.0 Class ID: EC001176
  • ETIM 6.0 Class-ID: EC001176
  • ETIM 6.0 Class-Description: threaded connection for flexible corrugated plastic tube

More info

▲

SILVYN® FLEXILOK M, fitting with metric thread

  • Very economical
  • Small packing unit

proceeds

  • Quick assembly
  • Easy to assemble
  • Economical fitting for tubes
  • No parts to be missed
  • New space-saving design

Scope of use

  • Machine building
  • Construction of electrical panels
  • Suitable for continuous movements
  • Space-critical applications
  • Installation cables

Product features

  • In black, resistant to UV radiation and all kinds of weather conditions
  • Slim, one-piece design
  • Halogen and cadmium free

Reference Standards / Approvals

  • UL FILENUMBER E308201

Product composition

  • Metric connection nut
  • One-piece body
  • Special fastening system

Notice

  • Detachable with a screwdriver
  • Versions with PG thread available in the online catalog

ETS Classification 5

  • ETIM 5.0 Class ID: EC001176
  • Description of class ETIM 5.0: threaded connection for corrugated polyamide tube

ETTIM Rating 6

  • ETIM 6.0 Class-ID: EC001176
  • ETIM 6.0 Class-Description: threaded connection for flexible corrugated plastic tube

Reference Standards / Approvals

Available colors

  • Grey (RAL 7031)
    Black (RAL 9005), UV resistant

Material

  • PA66
    Halogen-free

Degree of protection:

  • IP 66

Temperature range

  • from -40 °C to +120 °C
